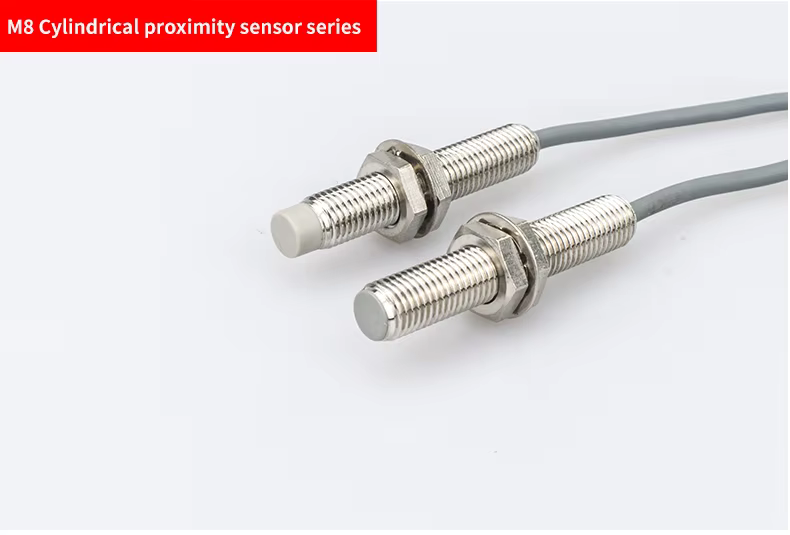

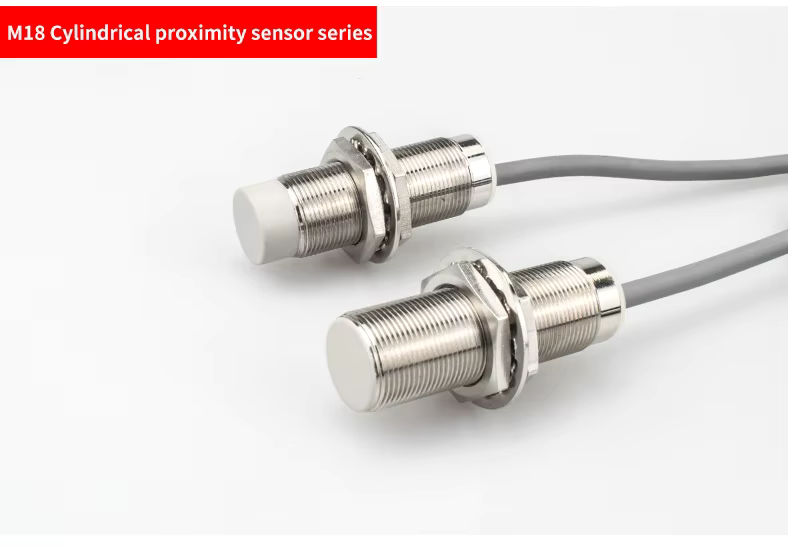

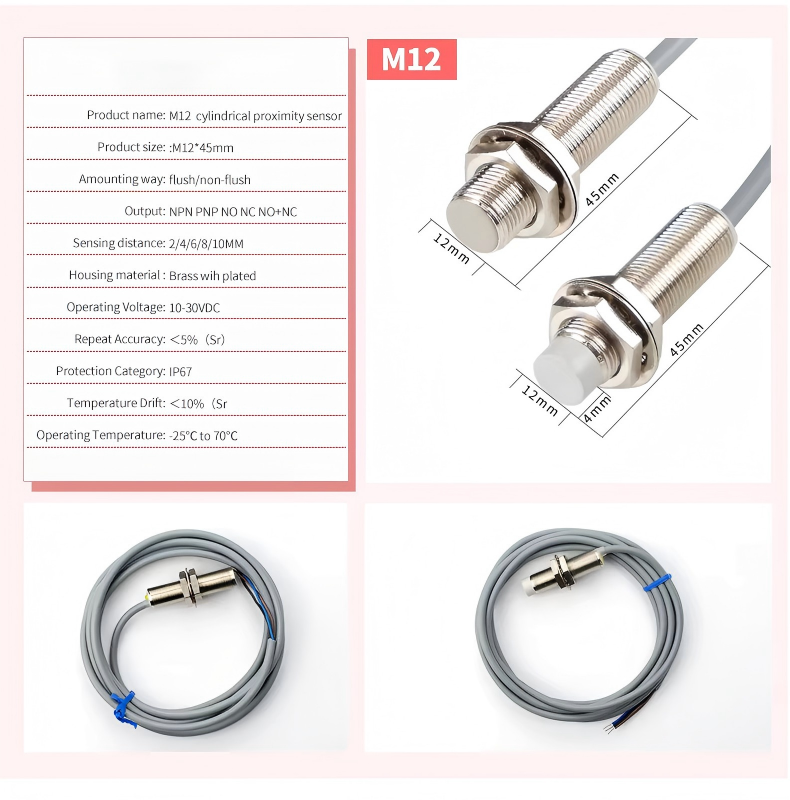

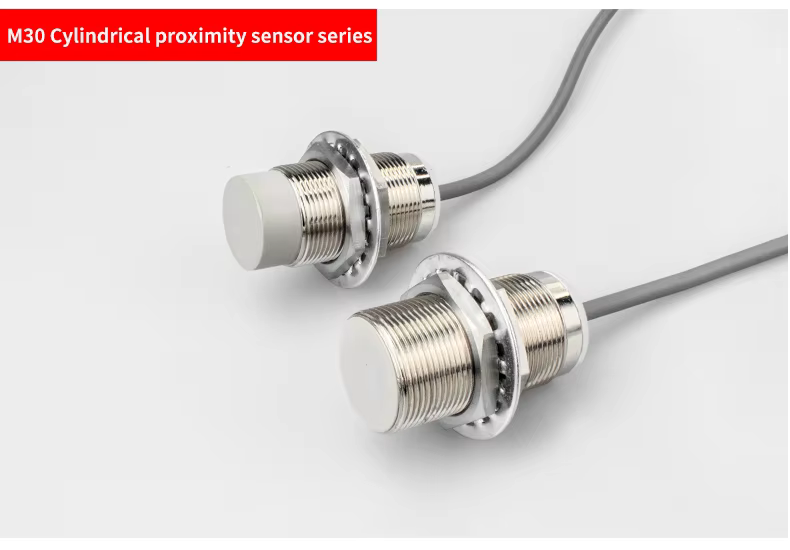

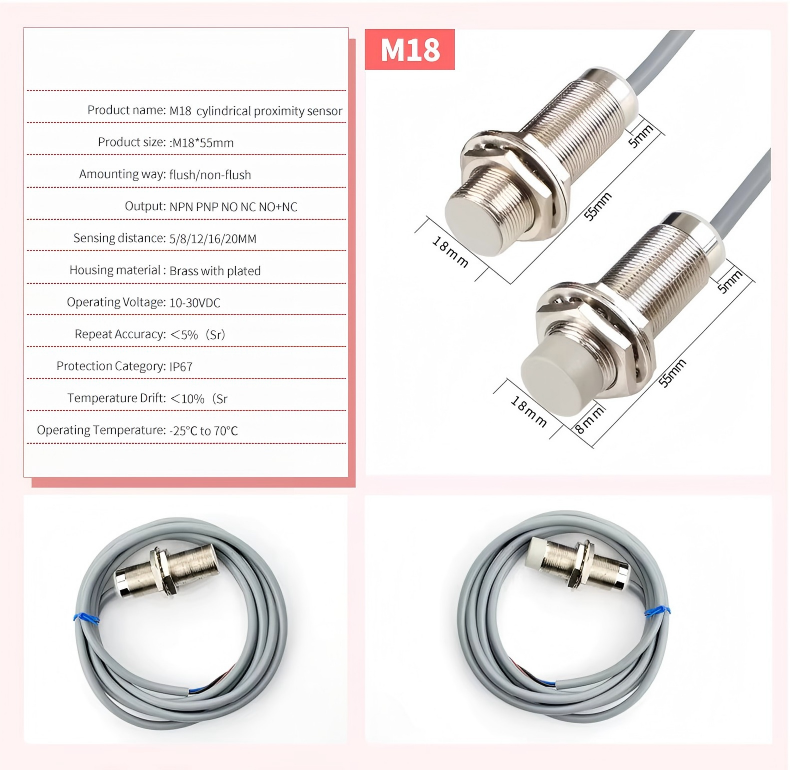

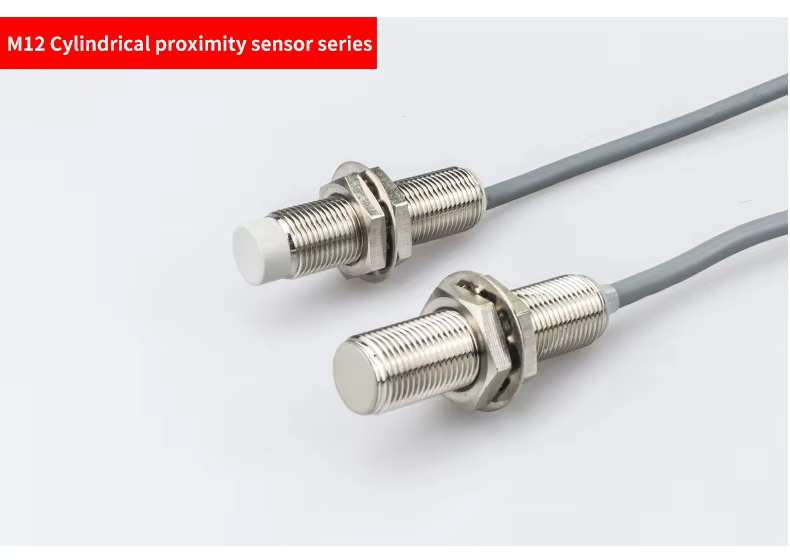

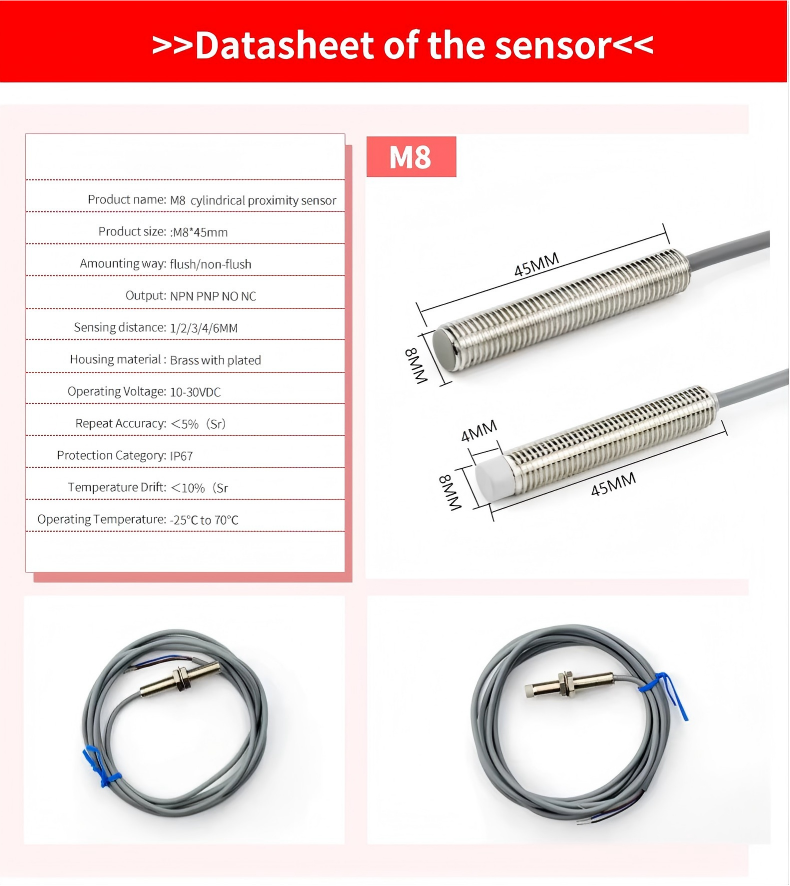

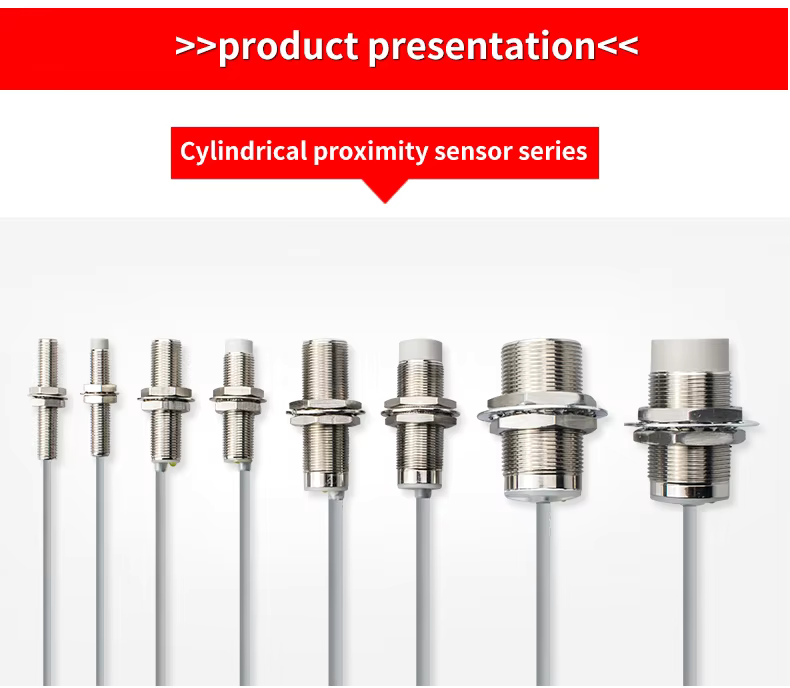

| Model NO. | M8/M12/M18/M30 Cylindrical proximity sensor series |
| IP Rating | IP67 |
| Customized | Customized |
| Application | Industrial Automation |
| Output | NPN/PNP No/Nc |
| Transport Package | Standard Package: 1 Pieces / Bag |
| Origin | Guangdong |
| Material | Brass with Nickel |
| Certification | RoHS CE |
| Mounting | Flush/Non-Flush |
| Sensing Distance | 2/4/5/8/10/16/25 mm |
| Response Time | 0.1ms |

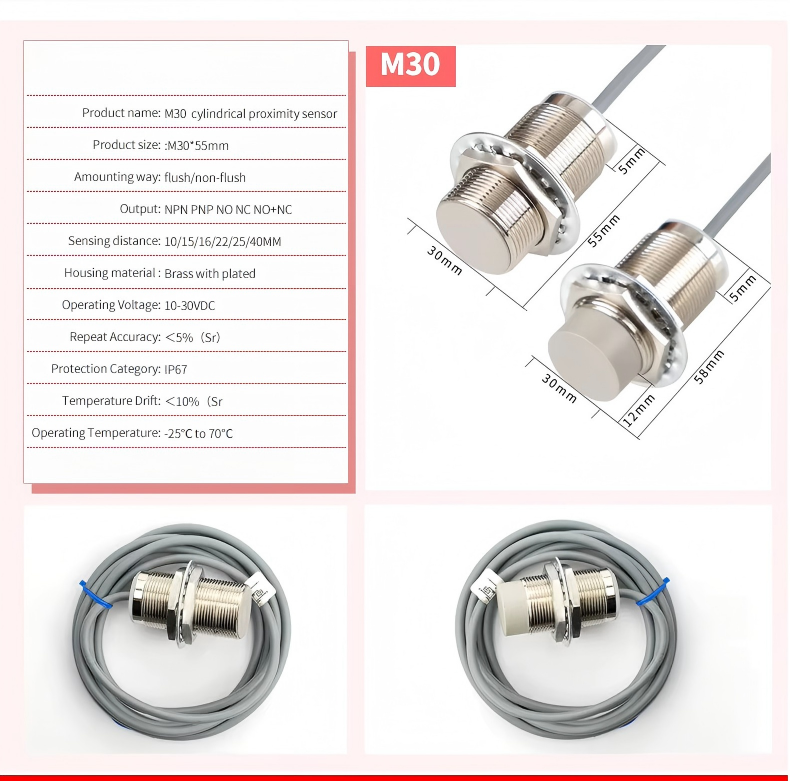

| Specification | M8/M12/M18/M30 |
| Production Capacity | 500000 Pieces/Year |
| Mounting | Flush /Non-flush |
| Supply voltage | 10-30VDC |
| Degree of protection | IP67 |

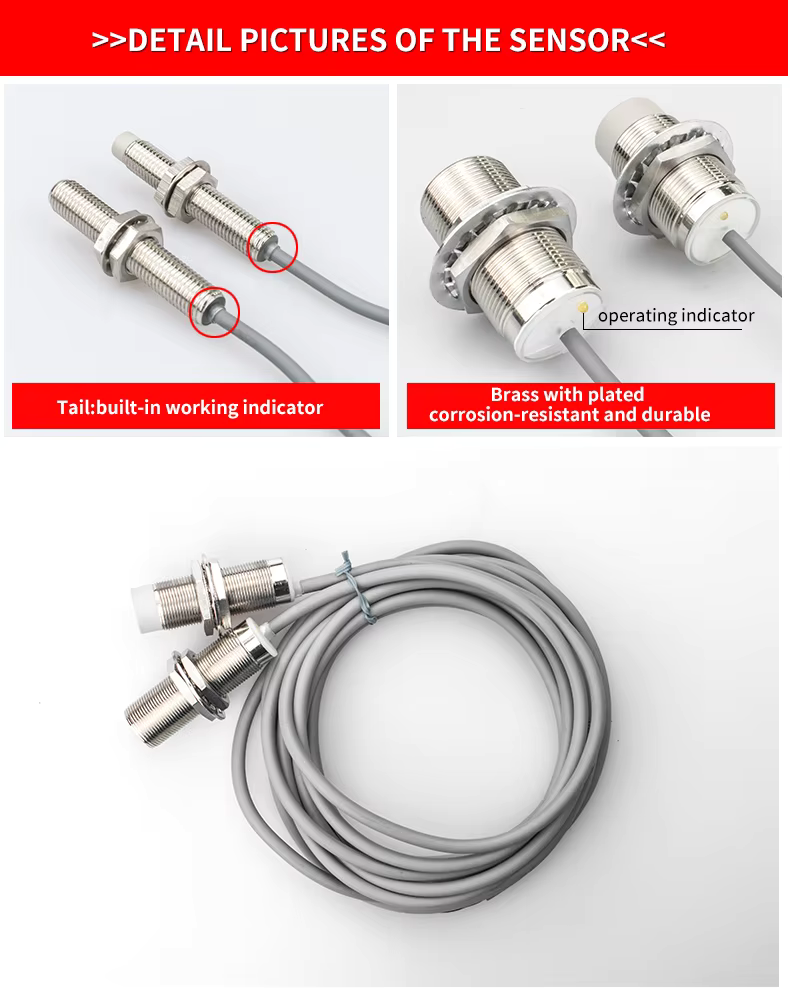

| Housing material | Brass with plated |
| OperatingTemperature | -25°C to 70°C |
| Temperature Drift | <10% |
