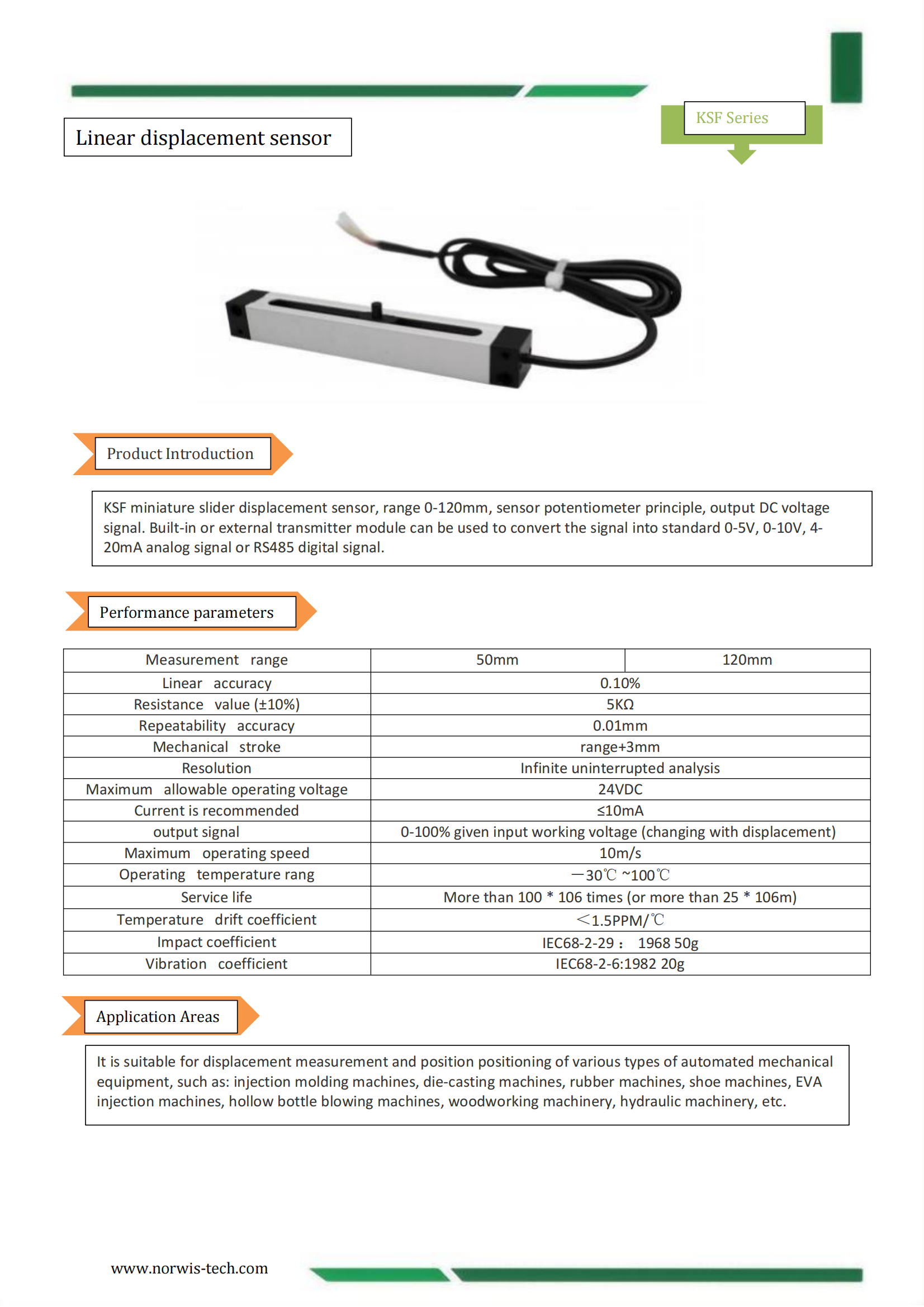

Technical Specifcations :

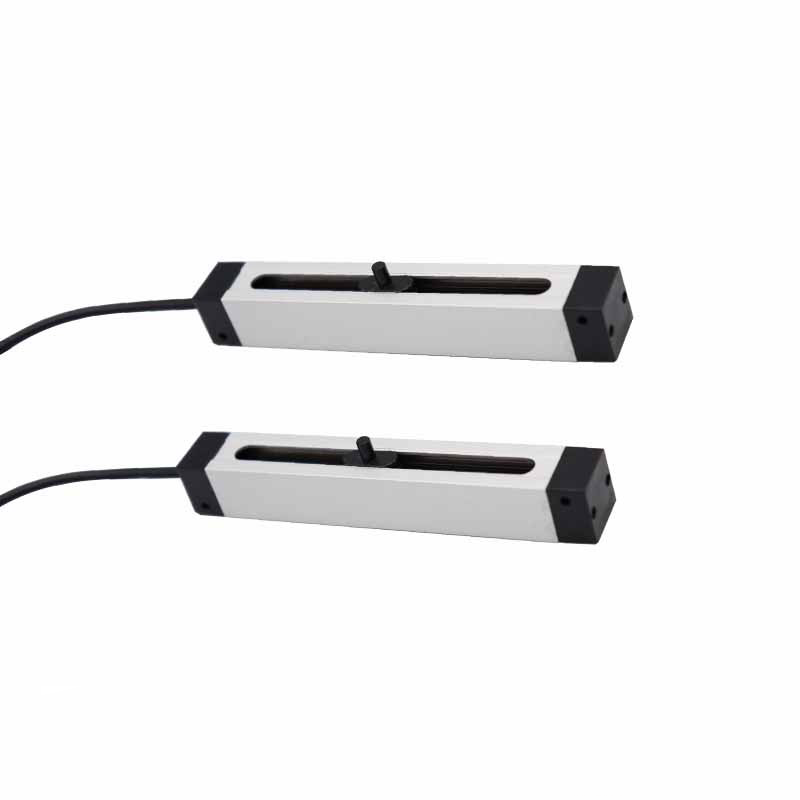

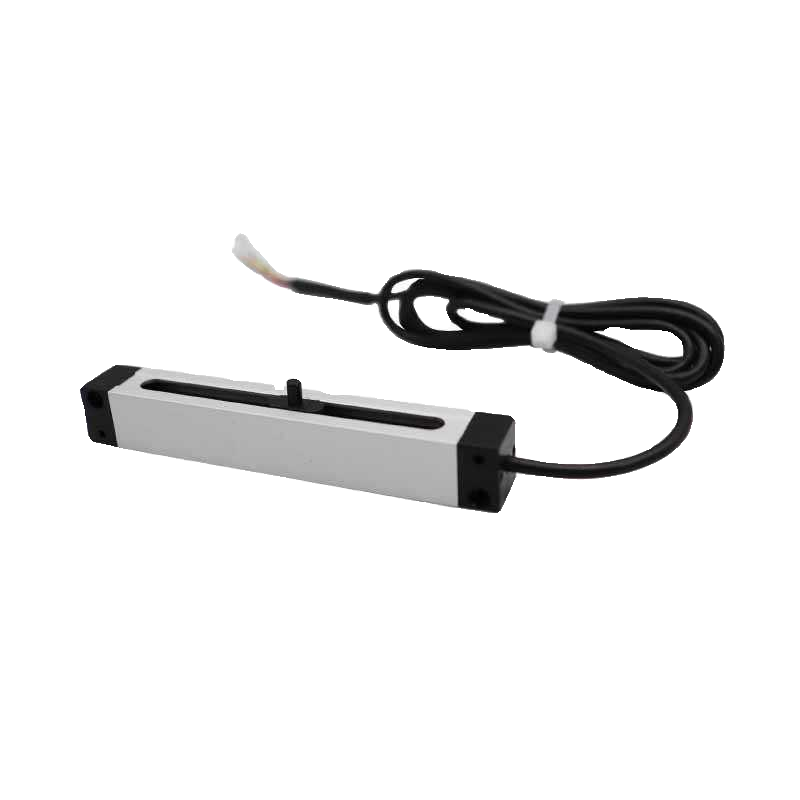

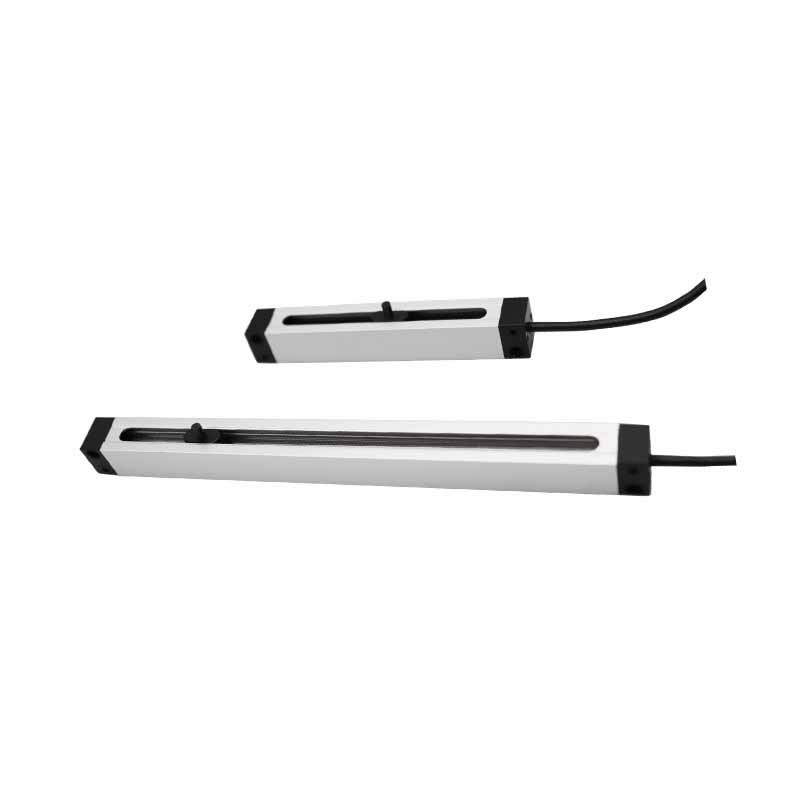

The KSF micro slider-type displacement sensor has a measurement range of 0-120mm. It operates on the principle of a sensor potentiometer and outputs a DC voltage signal. It can be equipped with an internal or external transmitter module to convert the signal into standard 0-5V, 0-10V, 4-20mA analog signals or RS485 digital signals.
| Range | 0-50mm | 50-120 mm |
| Linear accuracy | 0. 10% | |
| Resistance value (10%) | 5K Ω | |
| Repeatability accuracy | 0. 01mm | |
| Mechanical stroke | Range + 3mm | |
| resolution | Infinite uninterrupted analysis | |
| Maximum allowable working voltage | 24V DC | |
| Construction current | ≤10 mA | |
| output signal | 0-100% given input operating voltage (varies with displacement) | |
| Maximum working speed | 10m/s | |
| Operating temperature Range | -60 ℃ ~ 150 ℃ | |
| service life | More than 100 * 106 times (or more than 25 * 106m) | |
| Temperature drift coefficient | ＜ 1. 5PPM/t | |
| Impact coefficient | IEC68-2-29 ： 1968 50g | |
| Vibration coefficient | IEC68-2-6 ： 1982 20g | |

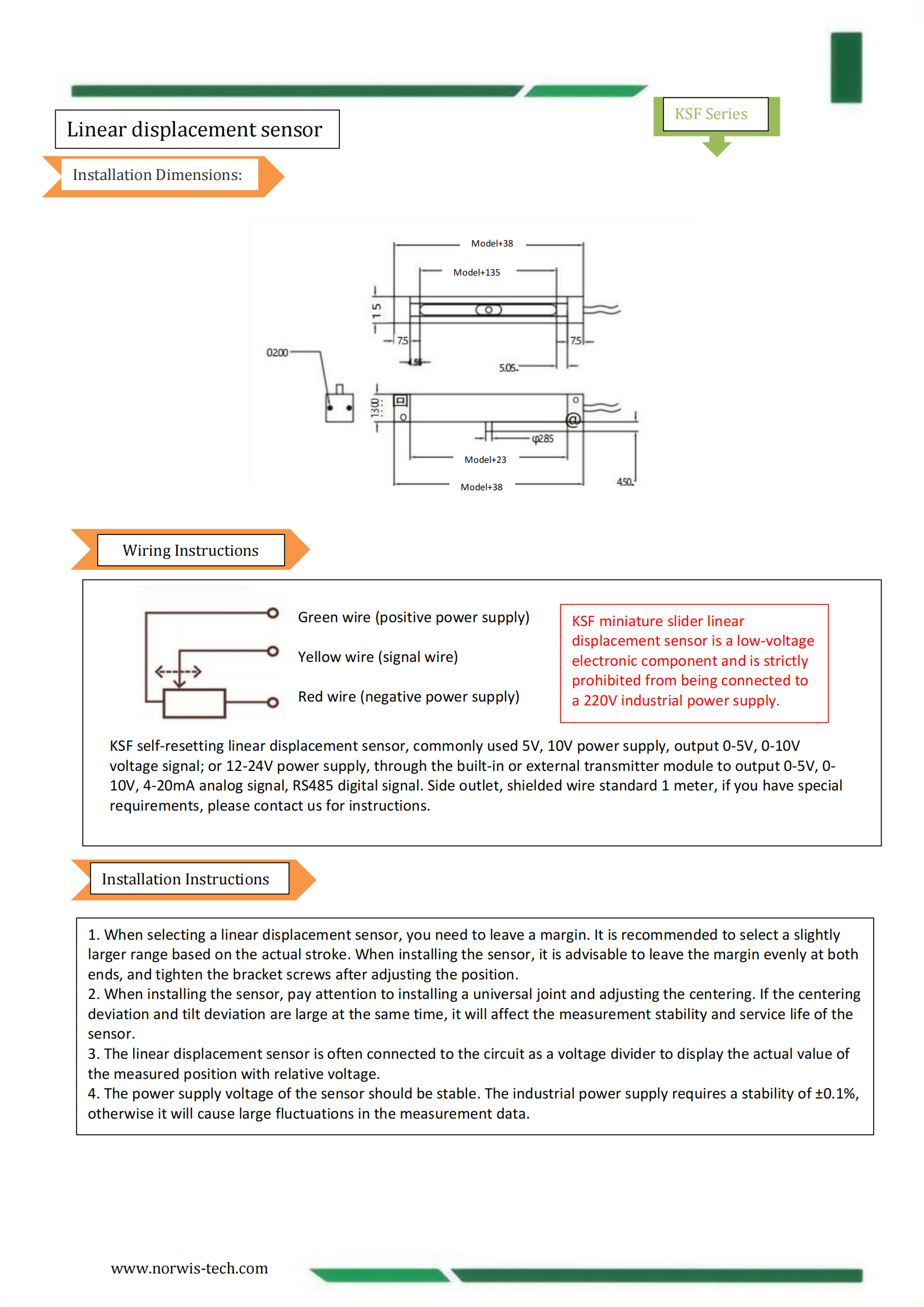

Dimension:
Application:
It is applicable to displacement measurement and position positioning of various types of automated mechanical equipment, such as injection molding machines, die-casting machines, rubber machines, shoe-making machines, EVA injection machines, hollow blow molding machines, woodworking machinery, hydraulic machinery, etc.
