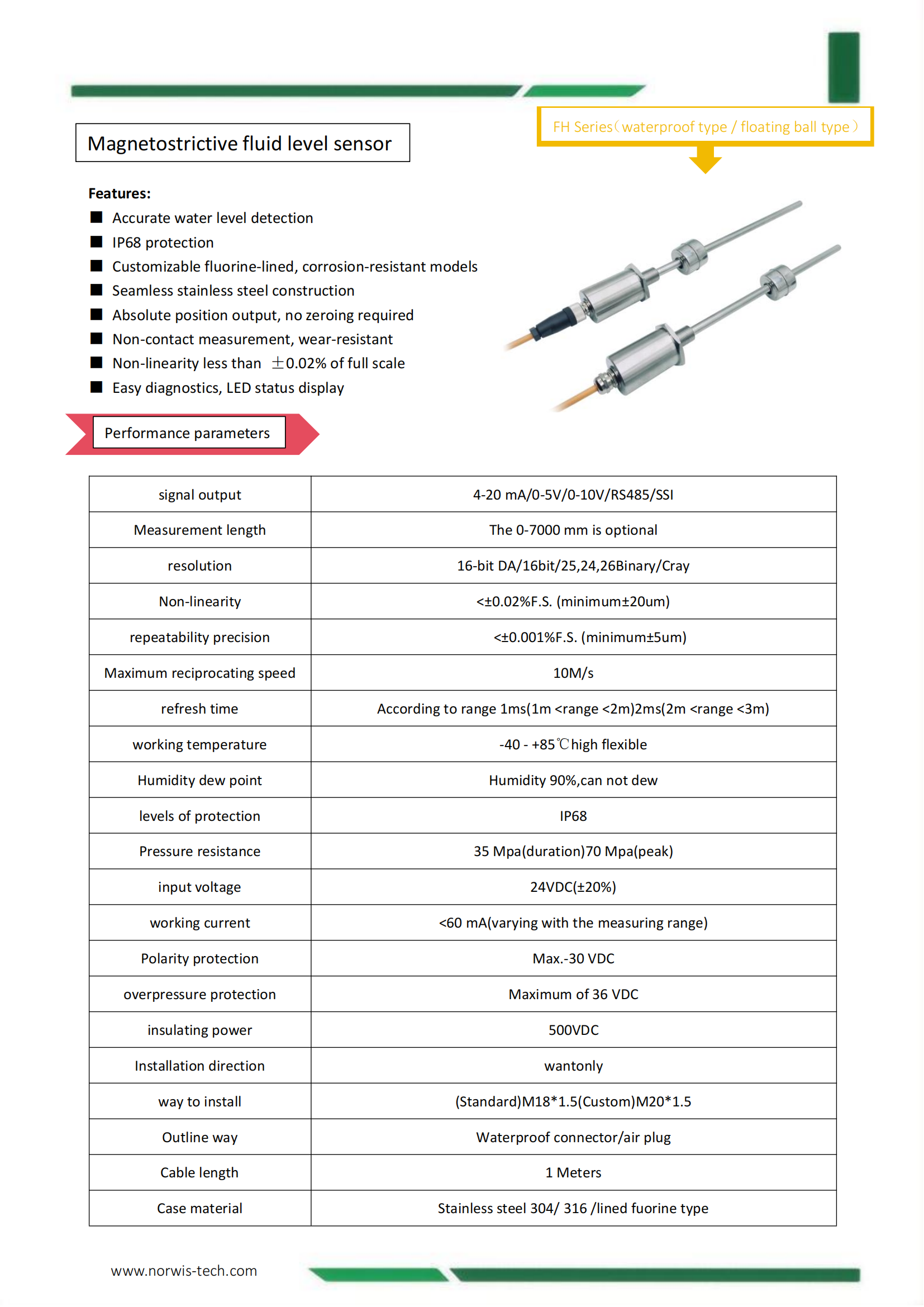

Features:
■ Accurate detection of water level level
■ Protection level IP68
■ Customized fluorine lining
■ All-round stainless steel seamless welding
■ Absolute position output, no zero
■ Non-contact measurement, never wear
■ Nonlinearity, less than the ± 0.02% of the full range
■ Easy to diagnose, LED lamp actual status display
Technical Parameters:
| signal output | 4-20mA/0-5V/0-10V/ RS485/ SSI |
| Measurement length | The 0-7000 mm range is optional |
| resolution | 16-bit DA / 16bit / 25,24,26Binary / Cray |
| Non-linearity | <±0.02%F.S. (minimum ± 20um) |
| repeatability precision | <±0.001%F.S. (minimum ± 5um) |
| Maximum reciprocating speed | 10M/s |
| refresh time | According to range 1ms (1m <range <2m) 2ms (2m <range <3m |
| working temperature | -40~+85℃ |
| Humidity dew point | Humidity 90%, can not dew |
| levels of protection | IP68 |
| Pressure resistance | 35 Mpa (duration) 70 Mpa (peak) |
| input voltage | 24VDC (±20%） |
| working current | <60 mA (varying with the range) |
| Polarity protection | Max. -30 VDC |
| overpressure protection | Maximum of 36 VDC |
| insulating power | 500VDC |
| Installation direction | wantonly |

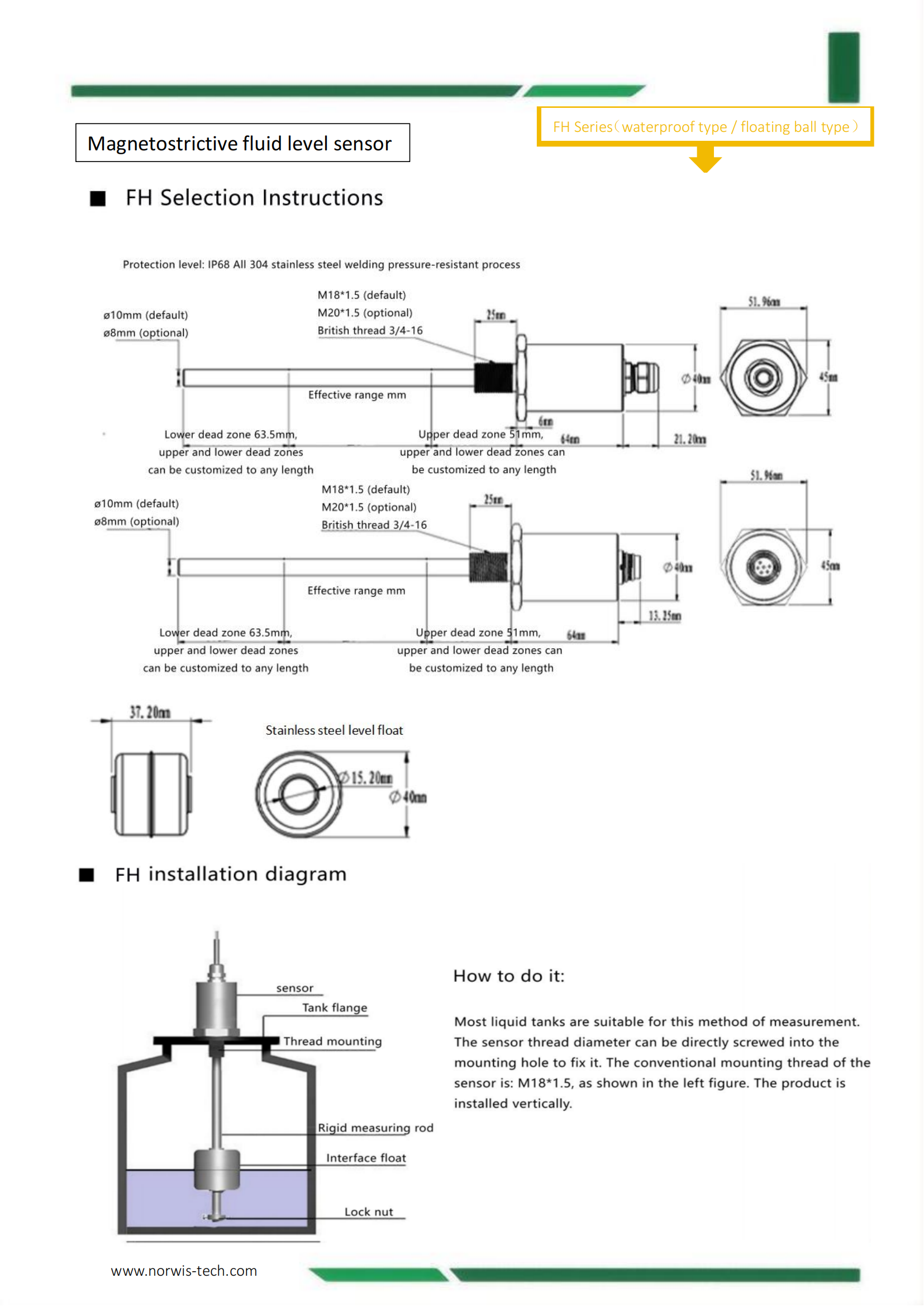

| way to install | (Standard) M18 * 1.5 (Custom) M20 * 1.5 |
| Outline way | Waterproof connector / air plug |
| Cable length | 1 Meters |
| Measuring rod material | Stainless steel 304 / 316 / lined fluorine type |
