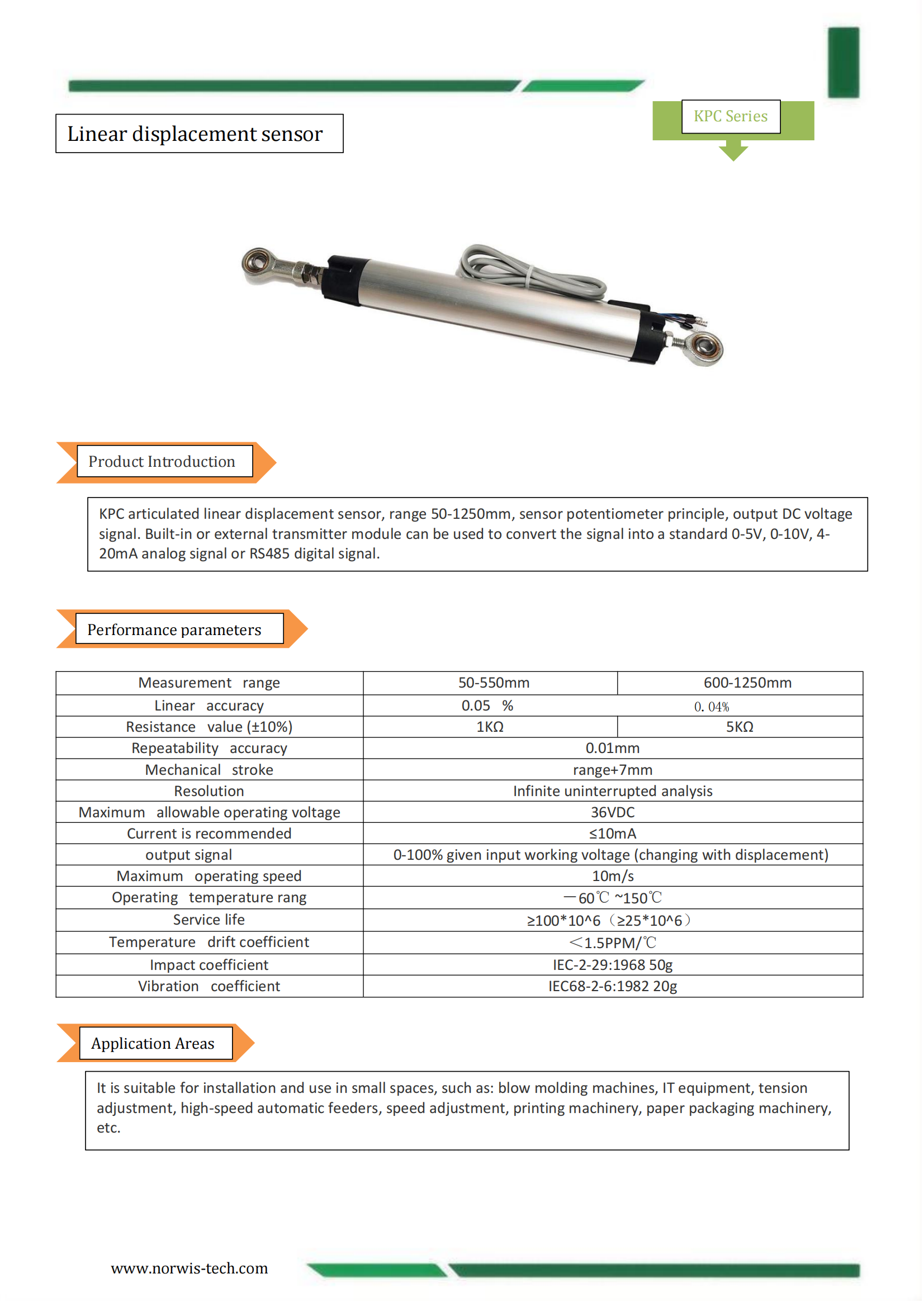

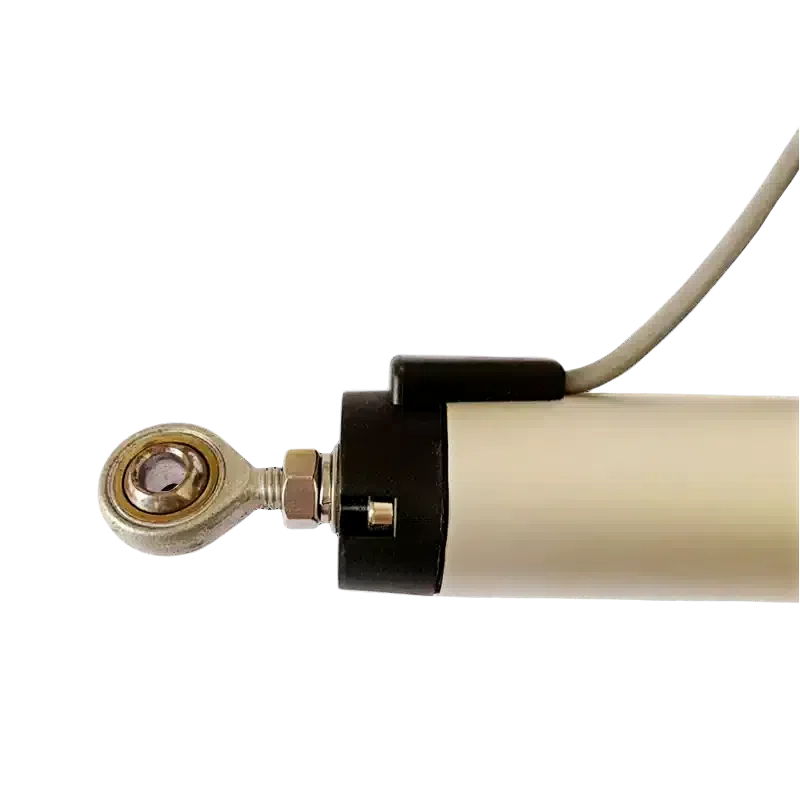

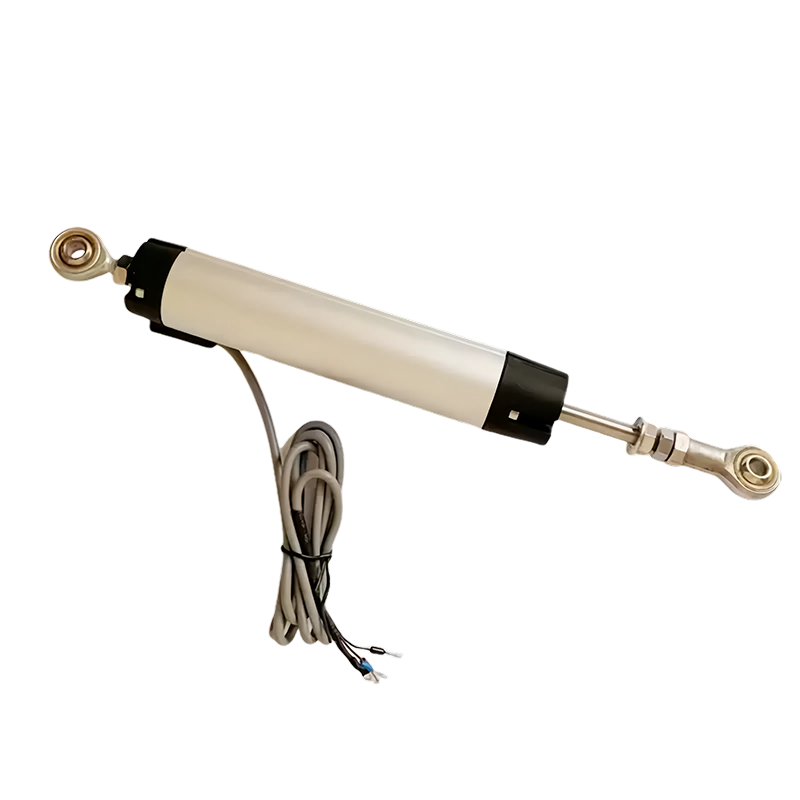

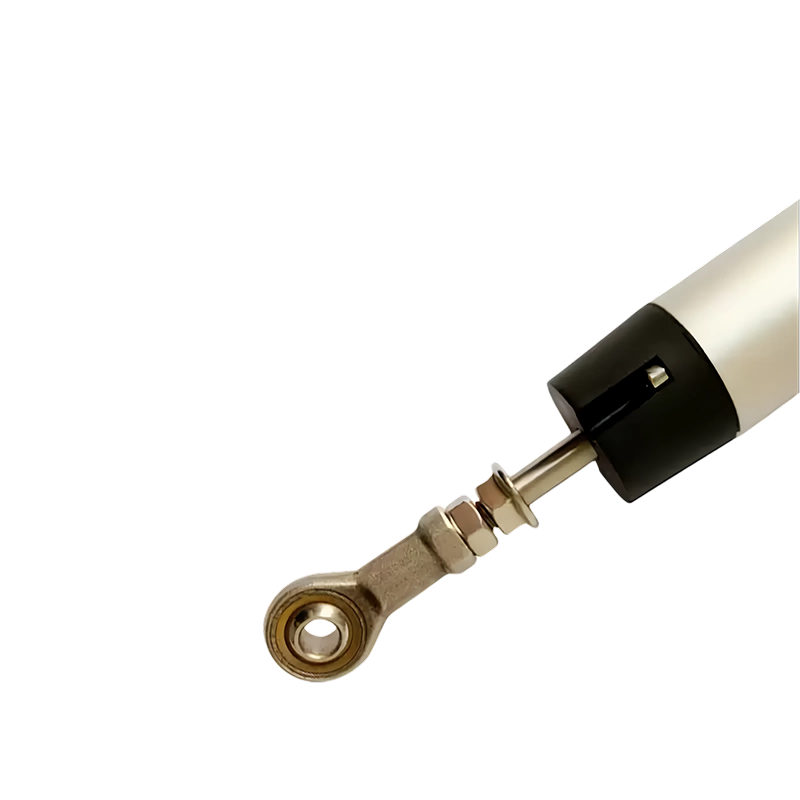

KPC twisted linear displacement sensor, measuring Range 50-1250mm, sensor potentiometer principle, output DC voltage signal. The signal can be converted into standard 0-5V, 0-10V, 4-20mA analog signal or RS485 digital signal by built-in or external transmission module.
| Range | 50-550mm | 600-1250mm |
| Linear accuracy | 0. 05% | 0. 04% |
| Resistance value （ ± 10% ） | 5K Ω | 10K Ω |
| Repeatability accuracy | 0. 01mm | |
| Mechanical stroke | Range + 7mm | |
| resolution | Infinite uninterrupted analysis | |
| Maximum allowable working voltage | 36V DC | |
| Current is recommended | ≤10 mA | |
| output signal | 0-100% given input working voltage (changing with displacement) | |
| Maximum working speed | 10m/ s | |
| Operating temperature Range | -60 ℃ ~ 150 ℃ | |
| service life | More than 100 * 106 times (or more than 25 * 106m) | |
| Temperature drift coefficient | <1. 5PPM/ ℃ | |
| Impact coefficient | IEC68-2-29 ： 1968 50g | |
| Vibration coefficient | IEC68-2-6 ： 1982 20g | |
It is suitable for displacement measurement in swinging occasions, and there is no special requirement for installation centering, such as shoe machine, 3D seat (5d seat), prestressed jack, manipulator, robot, extractor, brick machine, ceramic machine, sluice control, etc.
