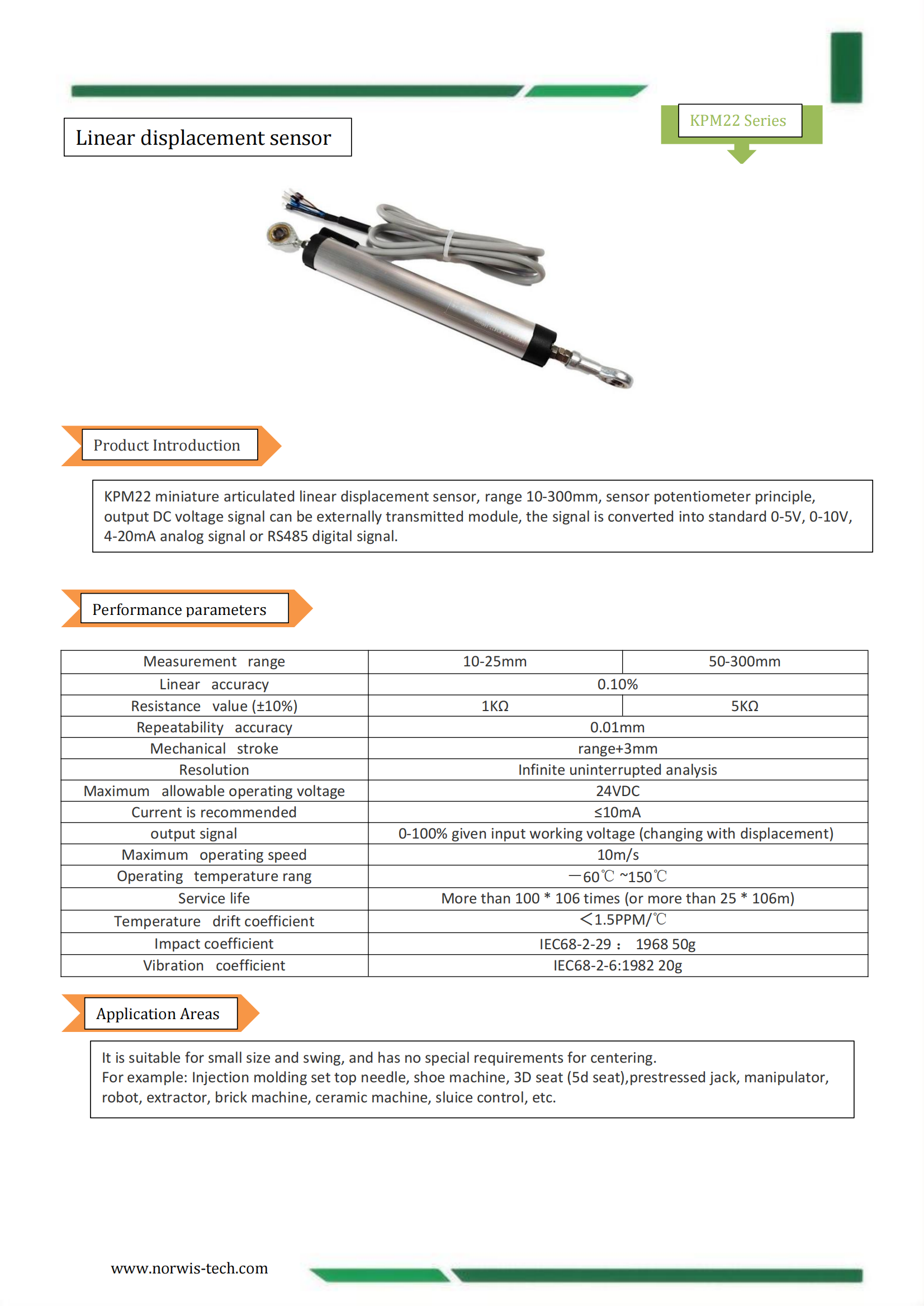

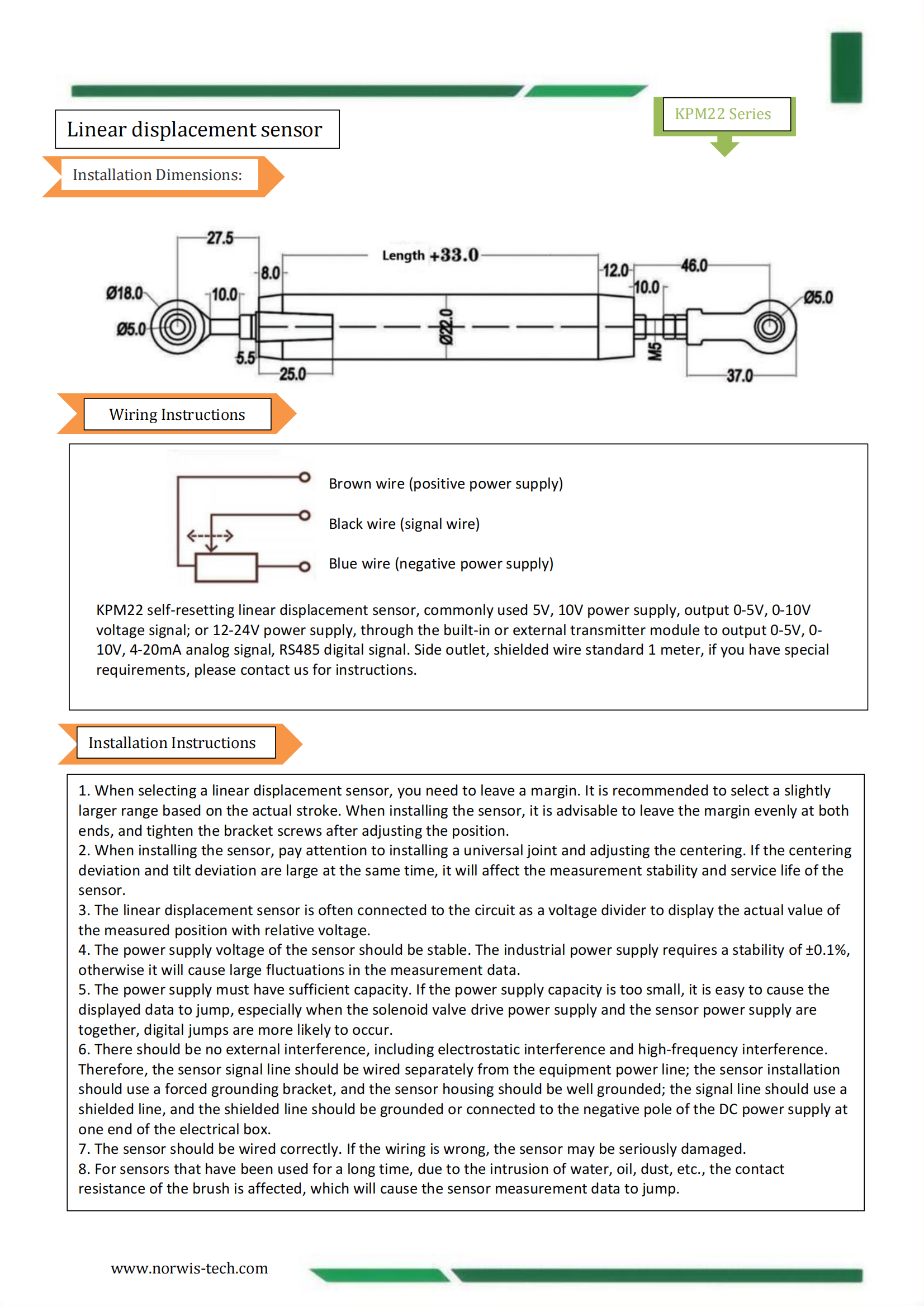

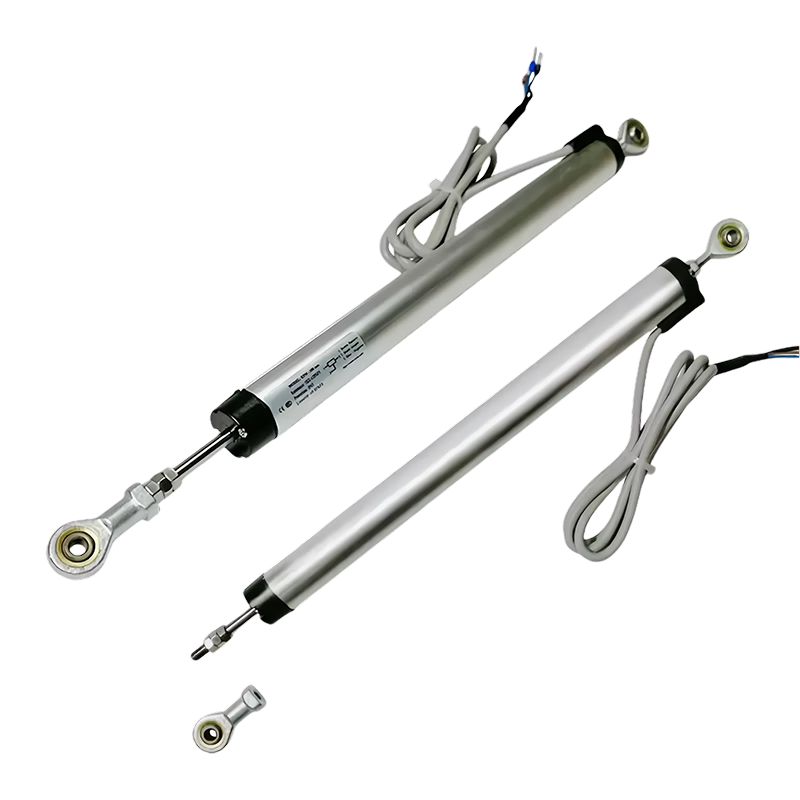

KPM22 Mini Hinge Joint Liner position Sensor
Feature:
1. Small Size
2. Long life, up to thirty million runs
3. Resolution higher than 0.01 MM
4. It is suitable for detecting the motion position when the ontology cannot be fixed
5. Protection level IP 65
6. High Operating Speed
7. Eye Joint, large angle (12.5) free movement
8. Configurable voltage flow (2-wire, 3-wire) modules
| Range | 10-25mm | 50-300 mm |
| Linear accuracy | 0. 10% | |
| Resistance value （ ± 10% ） | 1K Ω | 5K Ω |
| Repeatability accuracy | 0.01mm | |
| Mechanical stroke | Range + 3um | |
| resolution | Infinite uninterrupted analysis | |
| Maximum allowable working voltage | 24V DC | |
| Current is recommended | ≤10 mA | |
| You have a number if you lose | 0-100% given input operating voltage (varies with displacement) | |
| Maximum working speed | 10m/s | |
| Operating temperature Range | -60 ℃ ~ 150 ℃ | |
| service life | More than 100 * 106 times (or more than 25 * 106m) | |
| Temperature drift coefficient | ＜ 1. 5PPM/t | |
| Impact coefficient | IEC68-2-29 ： 1968 50g | |
| Vibration coefficient | IEC68-2-6 ： 1982 20g | |
It is suitable for small size and swing, and has no special requirements for centering.
For example: Injection molding set top needle, shoe machine, 3D seat (5d seat),prestressed jack, manipulator, robot, extractor, brick machine, ceramic machine, sluice control, etc.

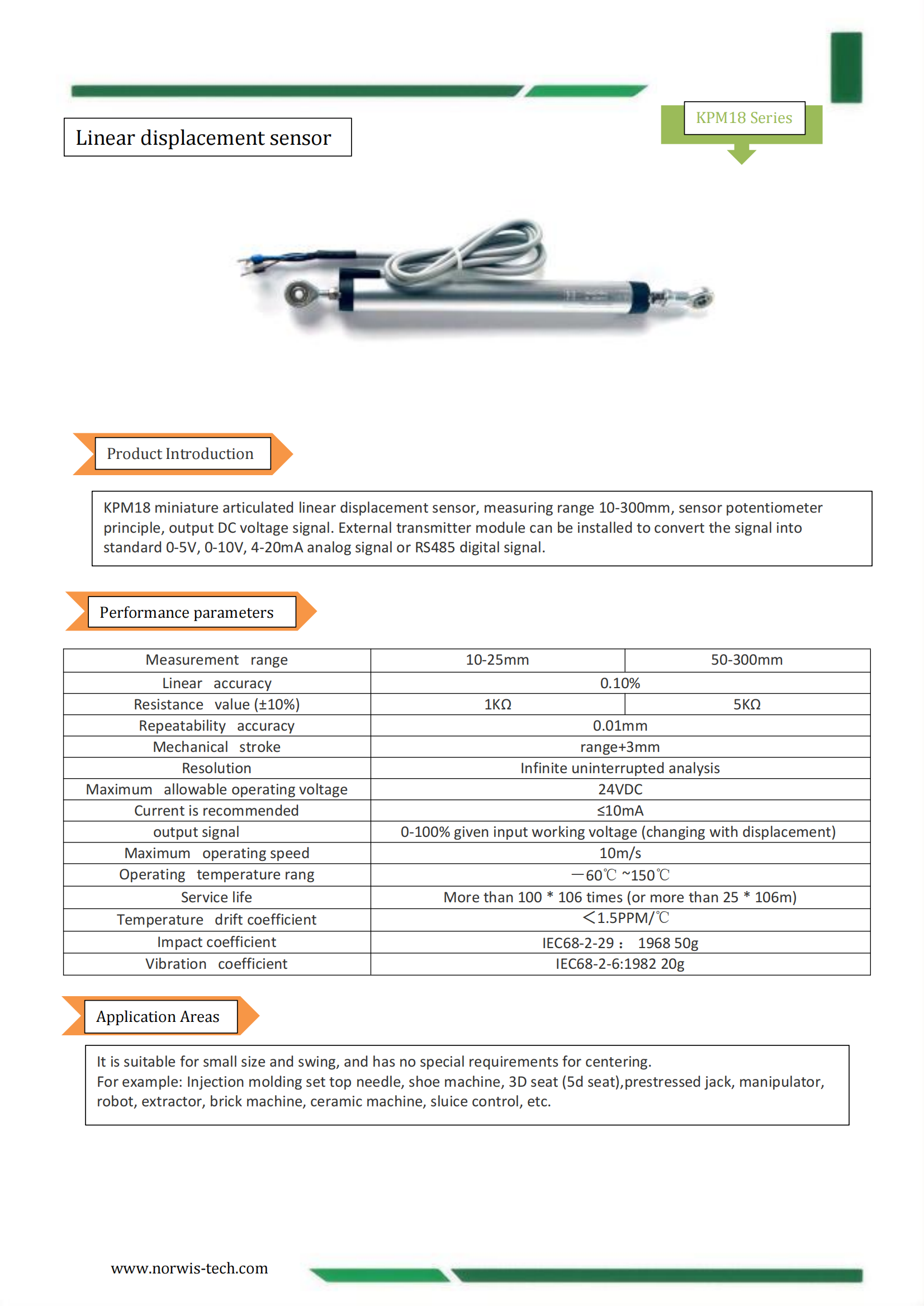

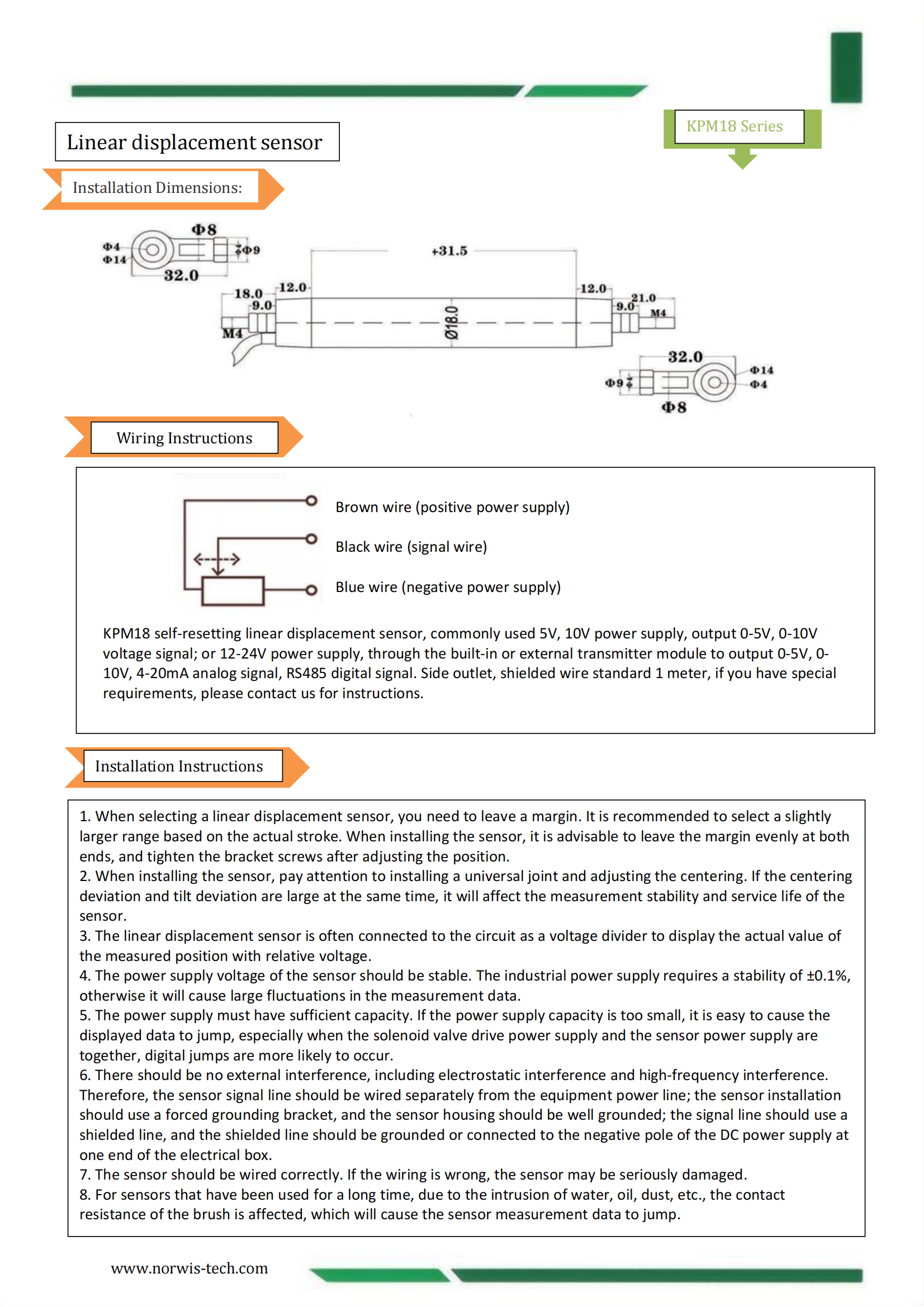

KPM18 Mini Hinge Joint Liner position Sensor
Feature:
1. Small Size
2. Long life, up to thirty million runs
3. Resolution higher than 0.01 MM
4. It is suitable for detecting the motion position when the ontology cannot be fixed
5. Protection level IP 65
6. High Operating Speed
7. Eye Joint, large angle (12.5) free movement
8. Configurable voltage flow (2-wire, 3-wire) modules
| Range | 10-25mm | 50-300 mm |
| Linear accuracy | 0. 10% | |
| Resistance value (10%) | 1K Ω | 5K Ω |
| Repeatability accuracy | 0. 01mm | |
| Mechanical stroke | Range + 3mm | |
| resolution | Infinite uninterrupted analysis | |
| Maximum allowable working voltage | 24V DC | |
| Construction current | ≤10 mA | |
| output signal | 0-100% given input operating voltage (varies with displacement) | |
| Maximum working speed | 10m/s | |
| Operating temperature Range | -60 ℃ ~ 150 ℃ | |
| service life | More than 100 * 106 times (or more than 25 * 106m) | |
| Temperature drift coefficient | ＜ 1. 5PPM/t | |
| Impact coefficient | IEC68-2-29 ： 1968 50g | |
| Vibration coefficient | IEC68-2-6 ： 1982 20g | |
It is suitable for small size and swing, and has no special requirements for centering.
For example: Injection molding set top needle, shoe machine, 3D seat (5d seat),prestressed jack, manipulator, robot, extractor, brick machine, ceramic machine, sluice control, etc.
