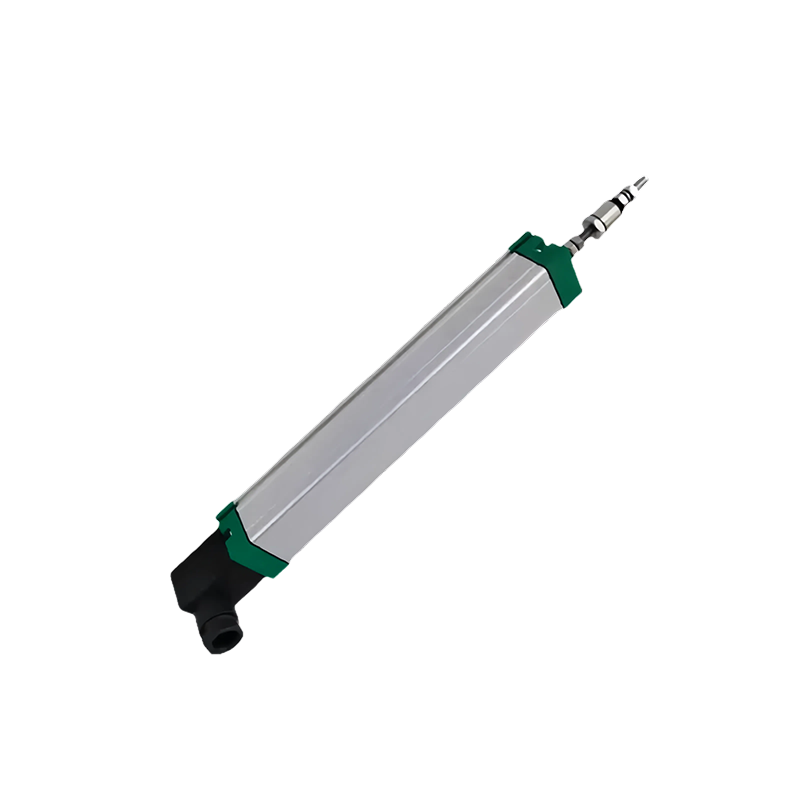

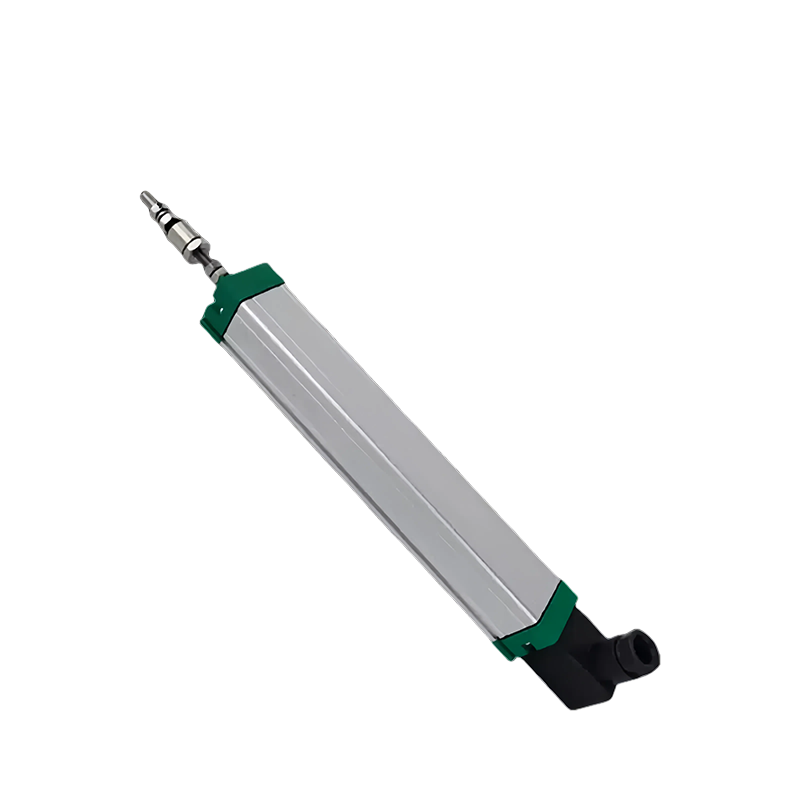

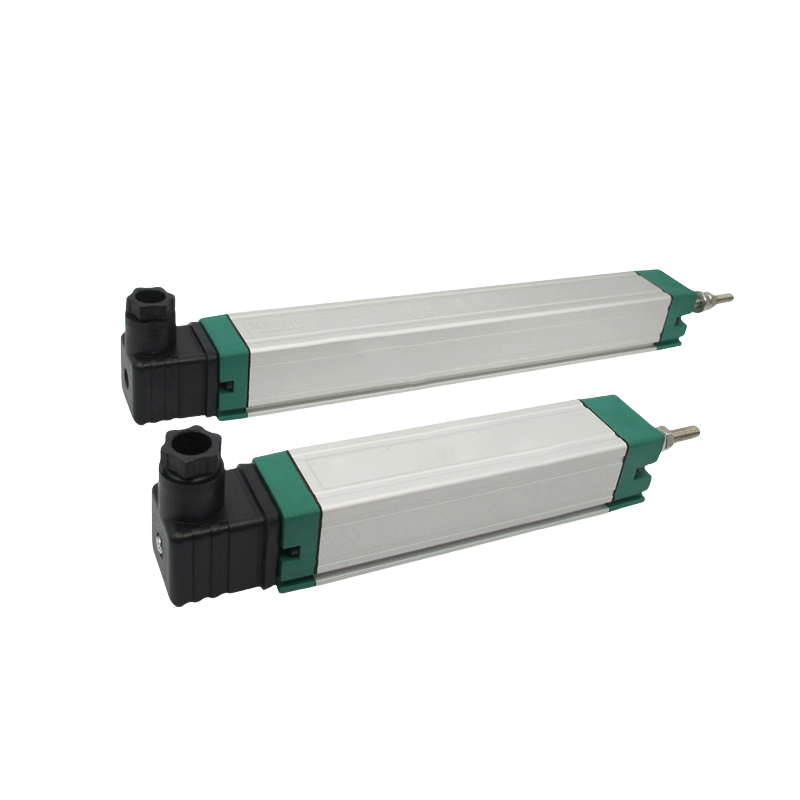

KTC/LWH Rod type Linear Scale
Feature:
1. Usage Life Is Longer, Times Could Reach Thirty Million
2. Linear Excellent
3. Resolution Rate Is Higher Than 0.01mm
4. High Speed
5. Din43650 Standard Plug And Socket
6. Protection Grade Is Ip65
7. Could Equip With Vbltage And Current ⑵inejline) Module

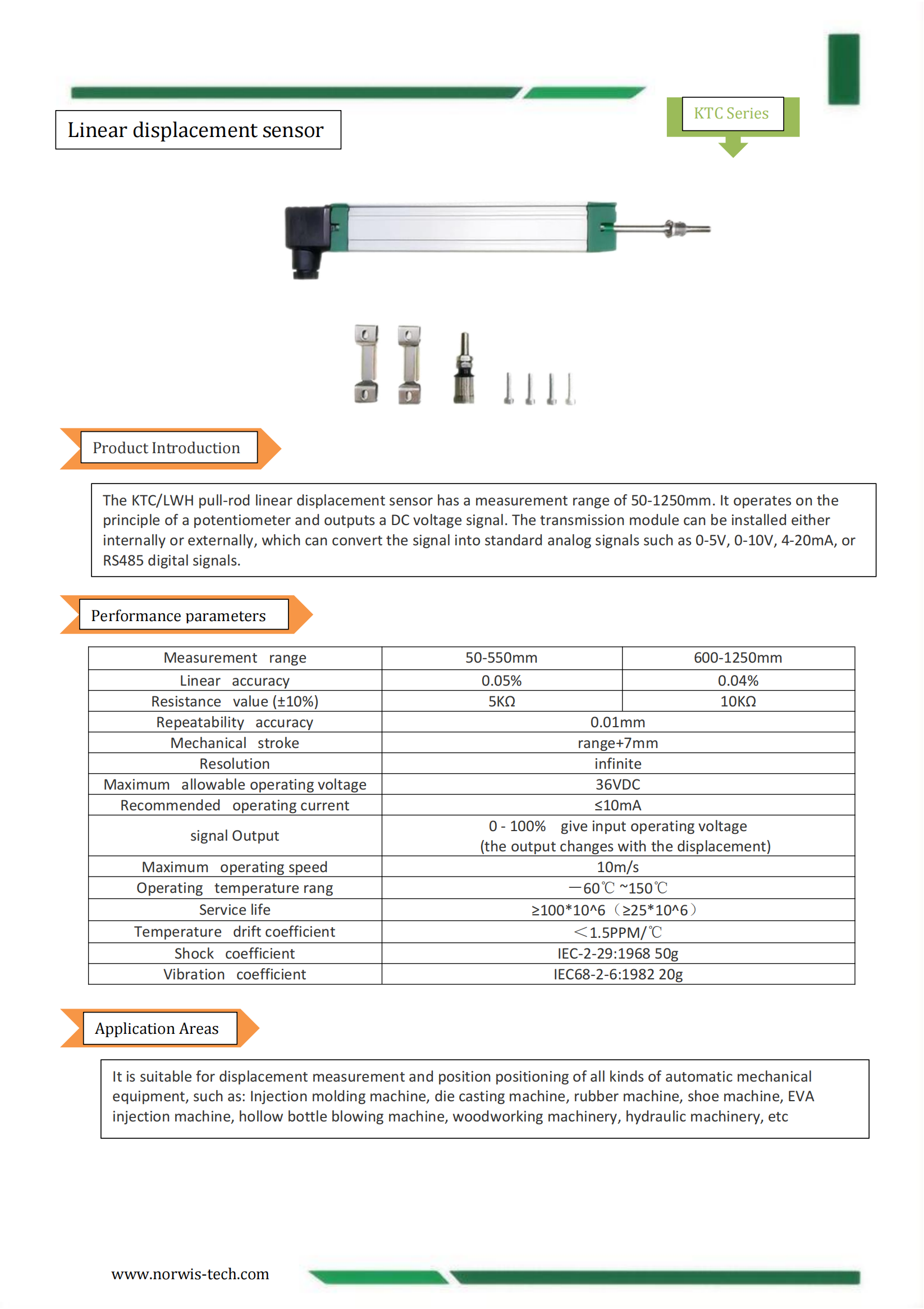

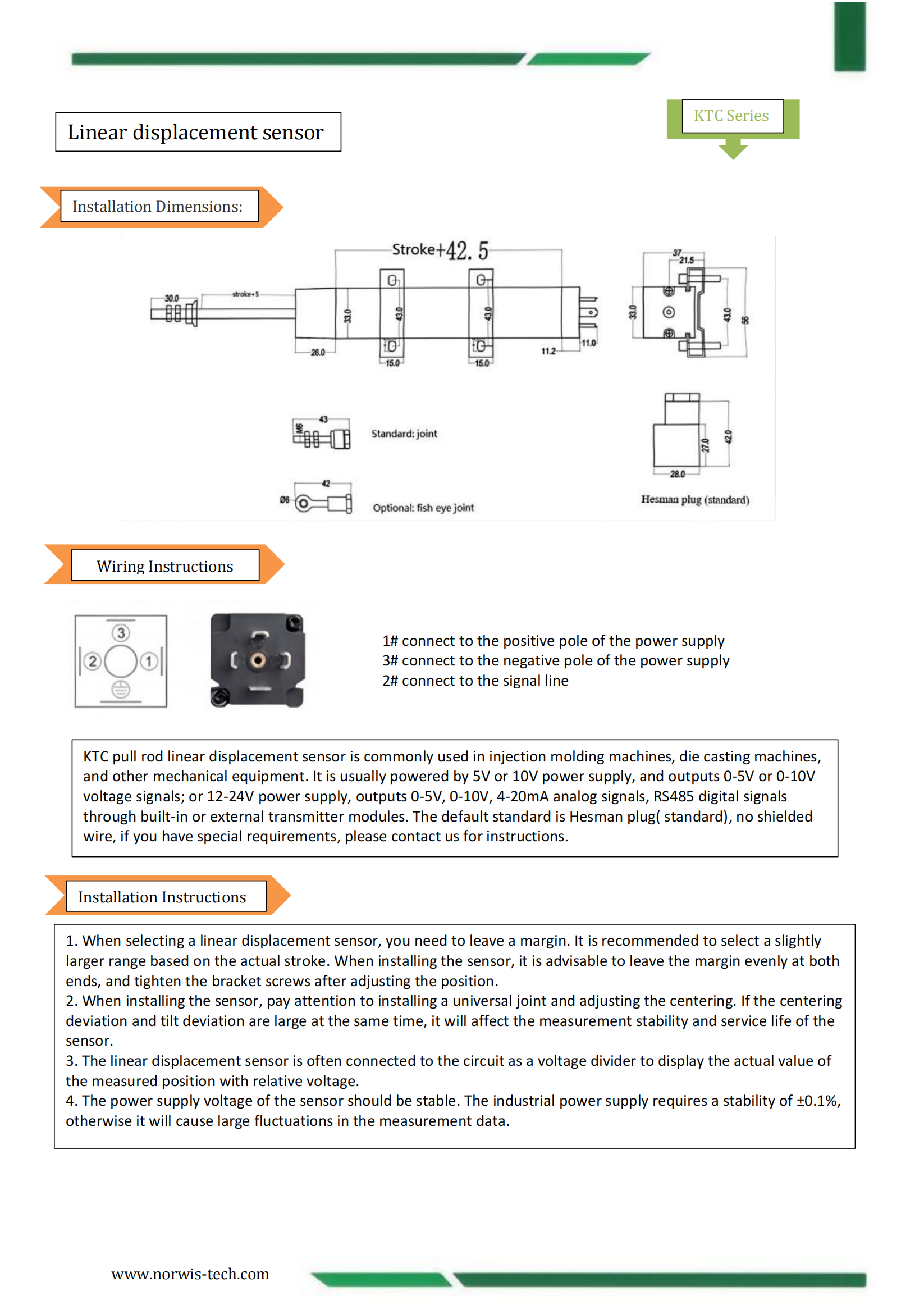

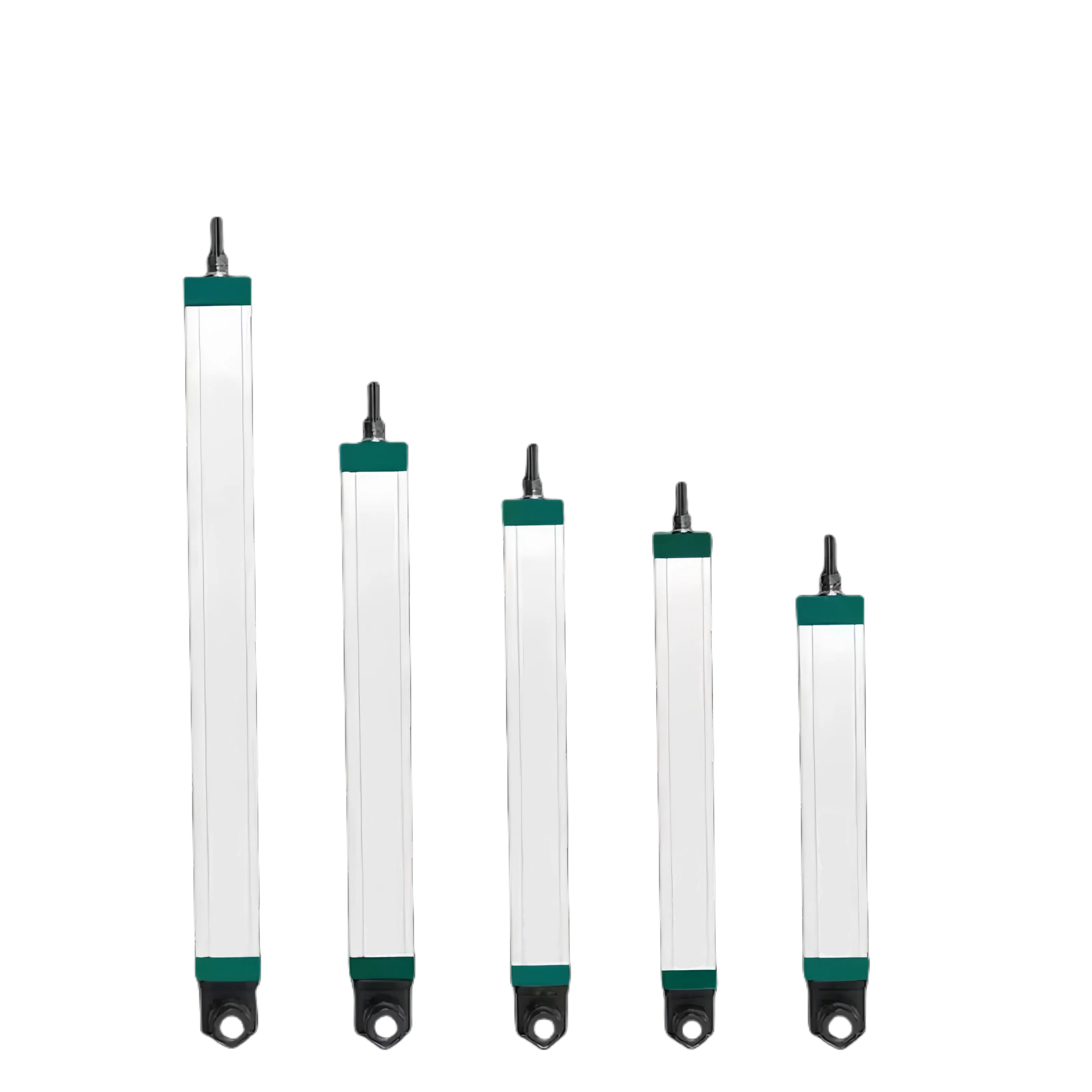

The KTC/LWH pull-rod linear displacement sensor has a measurement range of 50-1250mm. It operates on the principle of a potentiometer and outputs a DC voltage signal. The transmission module can be installed either internally or externally, which can convert the signal into standard analog signals such as 0-5V, 0-10V, 4-20mA, or RS485 digital signals.
| Measurement range | 50-550mm | 600-1250mm |
| Linear accuracy | 0.05% | 0.04% |
| Resistance value (±10%) | 5KΩ | 10KΩ |
| Repeatability accuracy | 0.01mm | |
| Mechanical stroke | range+7mm | |
| Resolution | infinite | |
| Maximum allowable operating voltage | 36VDC | |
| Recommended operating current | ≤10mA | |
| signal Output | 0 - 100% give input operating voltage (the output changes with the displacement) | |
| Maximum operating speed | 10m/s | |
| Operating temperature rang | －60℃ ~150℃ | |
| Service life | ≥100*10^6（≥25*10^6） | |
| Temperature drift coefficient | ＜1.5PPM/℃ | |
| Shock coefficient | IEC-2-29:1968 50g | |
| Vibration coefficient | IEC68-2-6:1982 20g | |

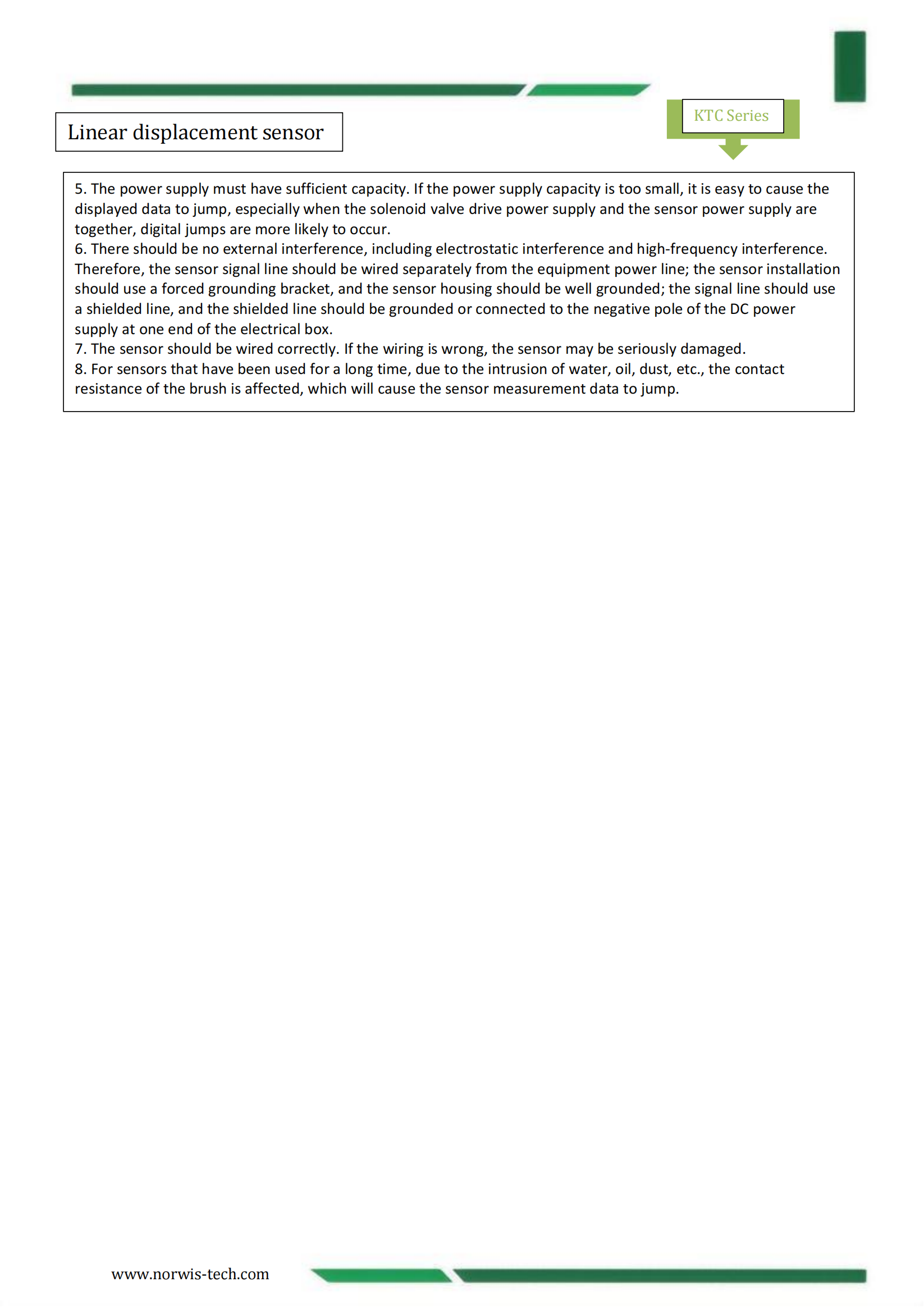

It is suitable for displacement measurement and position positioning of all kinds of automatic mechanical equipment, such as: Injection molding machine, die casting machine, rubber machine, shoe machine, EVA injection machine, hollow bottle blowing machine, woodworking machinery, hydraulic machinery, etc
