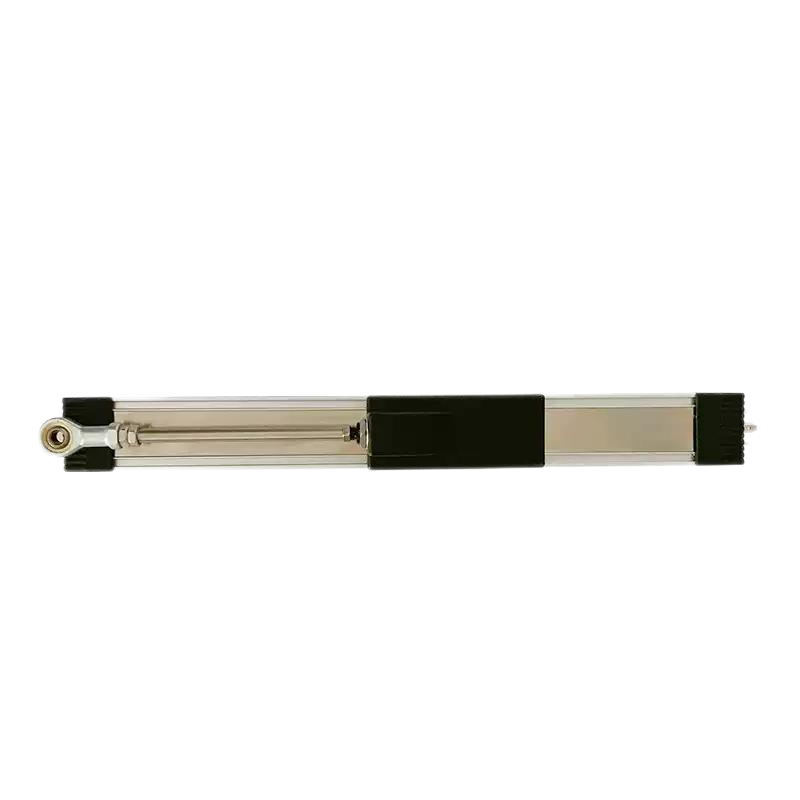

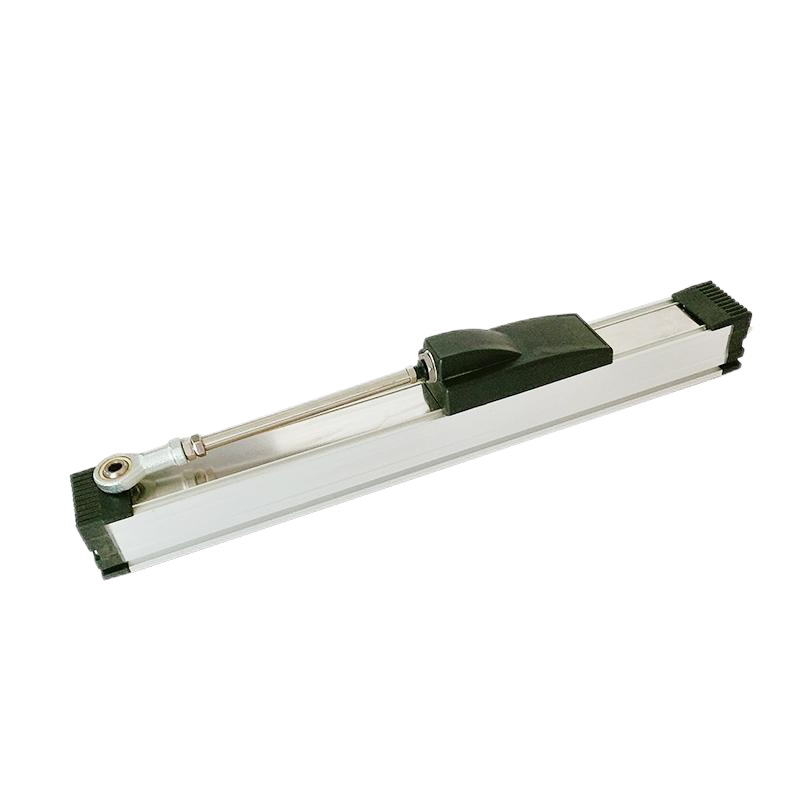

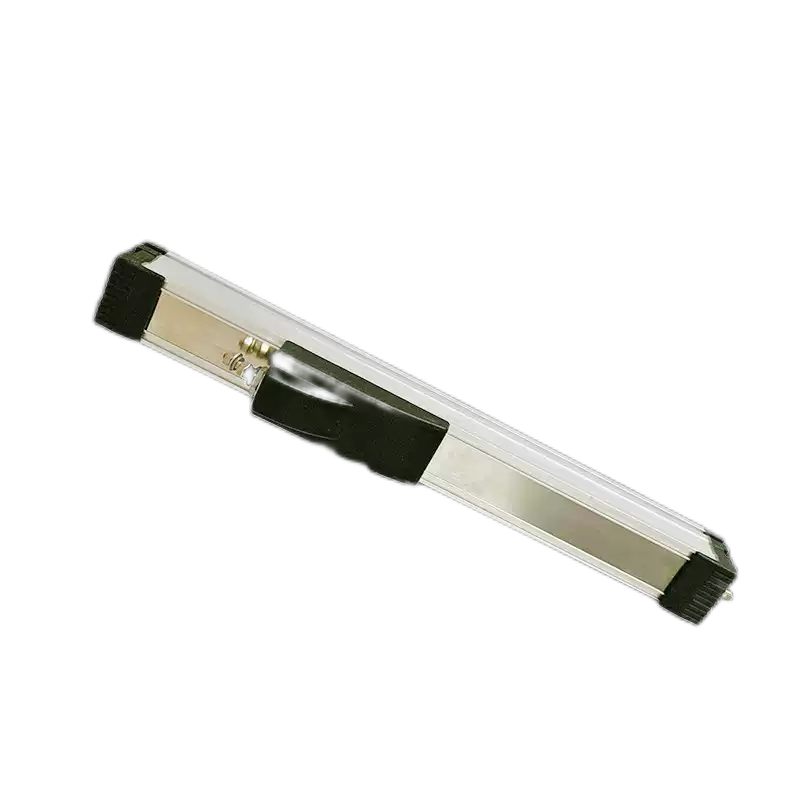

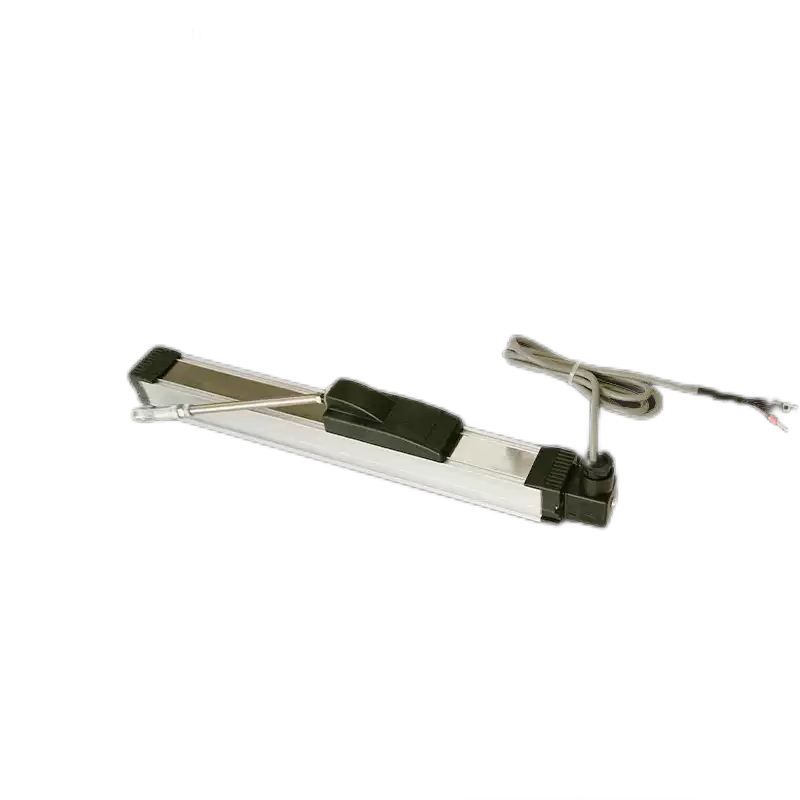

KTF Slide type linear position sensor
Feature:
1. No Pole Design
2. Spherical Hinge Could Avoid Lateral Force
3. Usage Life is Longer, Times Could Reach Thirty Million
4. Non-linearity Smaller
5. Resolution Rate Is Higher Than 0.01mm
6. High Speed
7. Din43650 Standard Plug And Socket
8. Protection Grade Is Ip65 (install Down is Ip57)
9.Could Equip With Vbltage And Current (2line,3line) Module

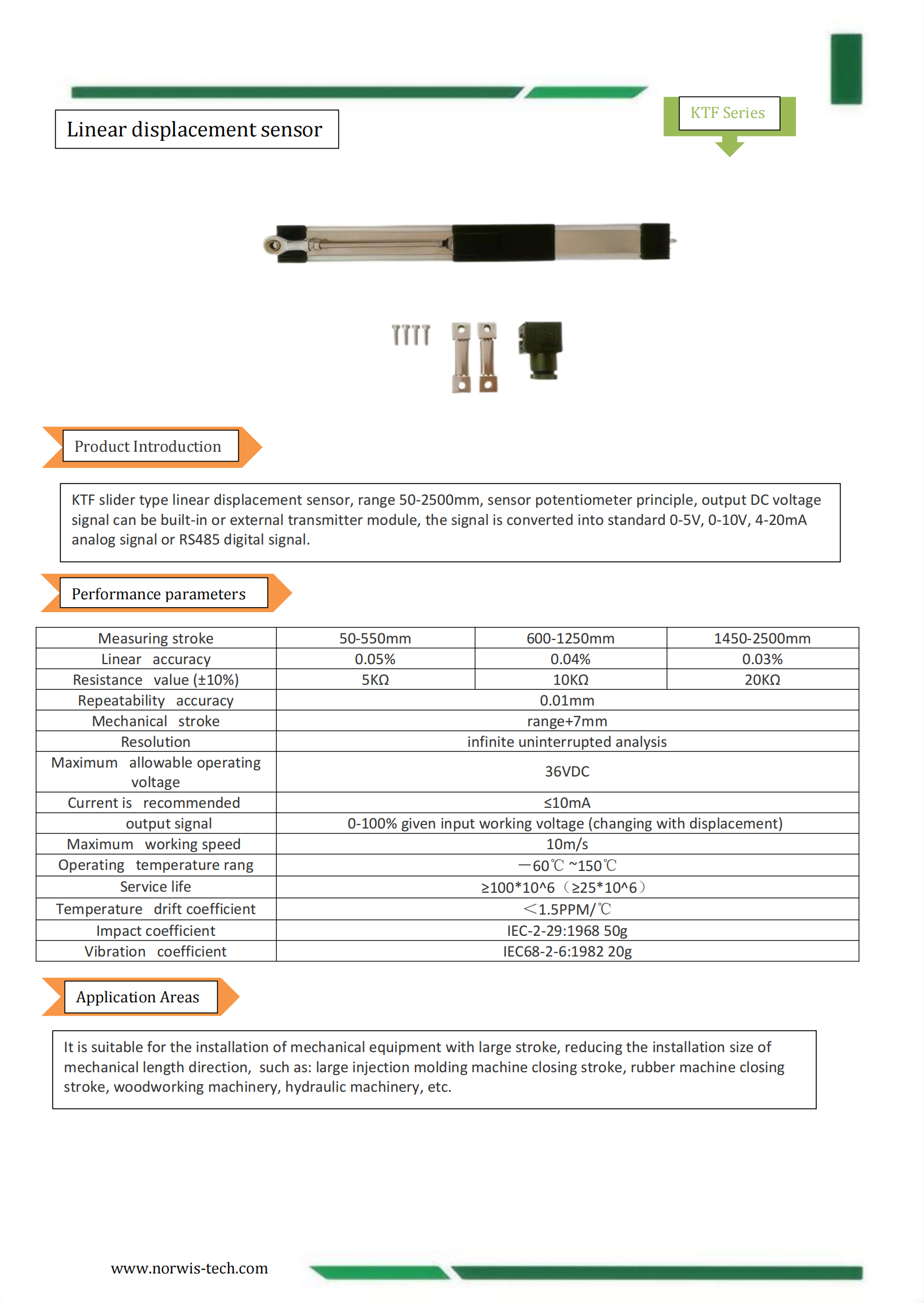

The KTF Slide type linear displacement sensor has a measurement range of 50-2500mm. It operates on the principle of a potentiometer and outputs a DC voltage signal. The transmission module can be installed either internally or externally, which can convert the signal into standard analog signals such as 0-5V, 0-10V, 4-20mA, or RS485 digital signals.
| Measuring stroke | 50-550mm | 600-1250mm | 1450-2500mm |
| Linearity | 0. 05% | 0. 04% | 0. 03% |
| Resistance value （ ± 10% ） | 5K Ω | 10K Ω | 20K Ω |
| Repeatability accuracy | 0. 01mm | ||
| Mechanical stroke | Range + 7mm | ||
| resolution | Infinite uninterrupted analysis | ||
| Maximum allowable working voltage | 36V DC | ||
| Current is recommended | ≤10 mA | ||
| output signal | 0-100% given input working voltage (changing with displacement) | ||
| Maximum working speed | 10m/s | ||
| Operating temperature Range | -60 ℃ ～ 150 ℃ | ||
| service life | More than 100 *10^6 times (or more than 25 * 10^m) | ||
| Temperature drift coefficient | <1. 5PPM/ ℃ | ||
| Impact coefficient | IEC68-2-29 ： 1968 50g | ||
| Vibration coefficient | IEC68-2-6 ： 1982 20g | ||

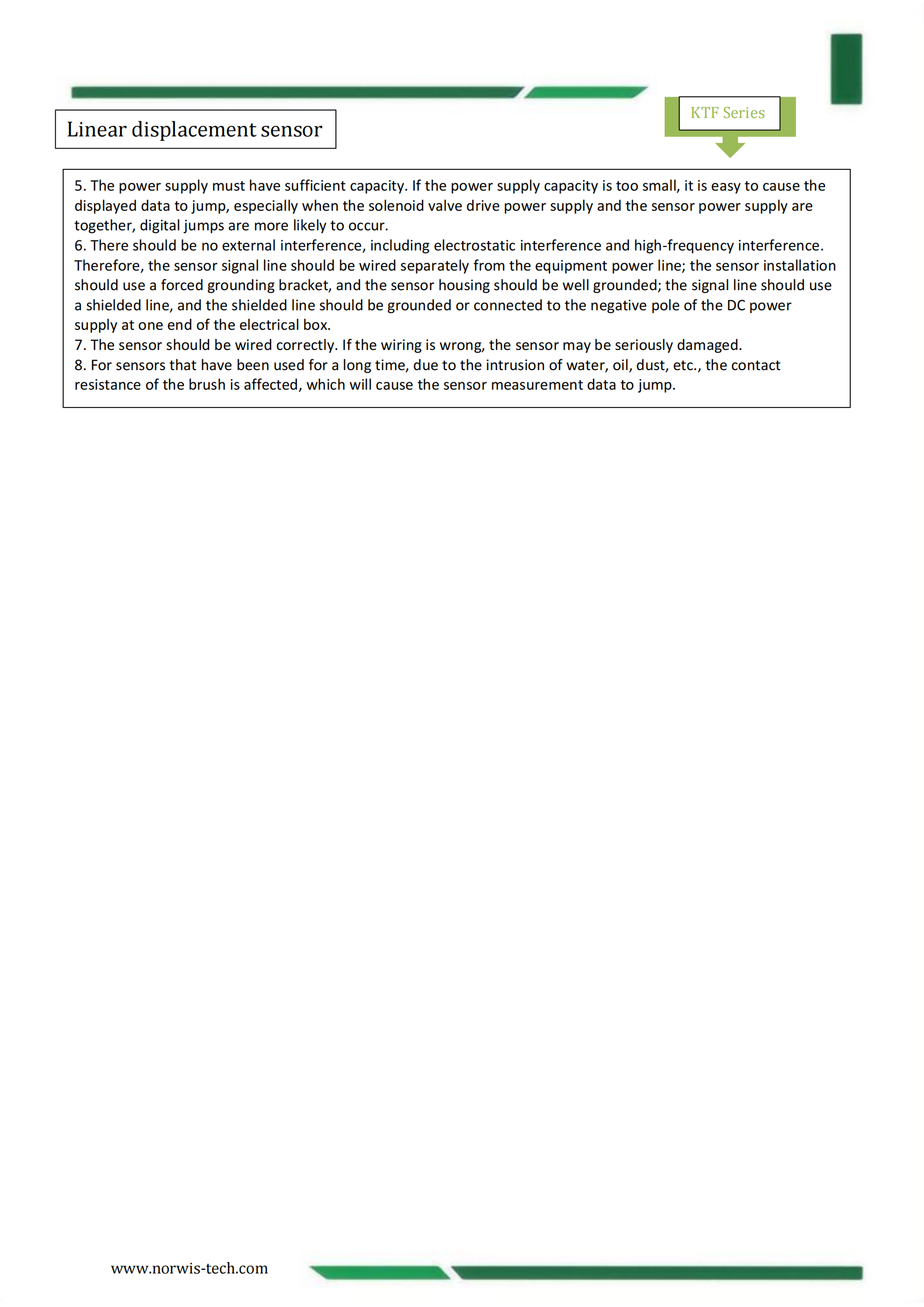

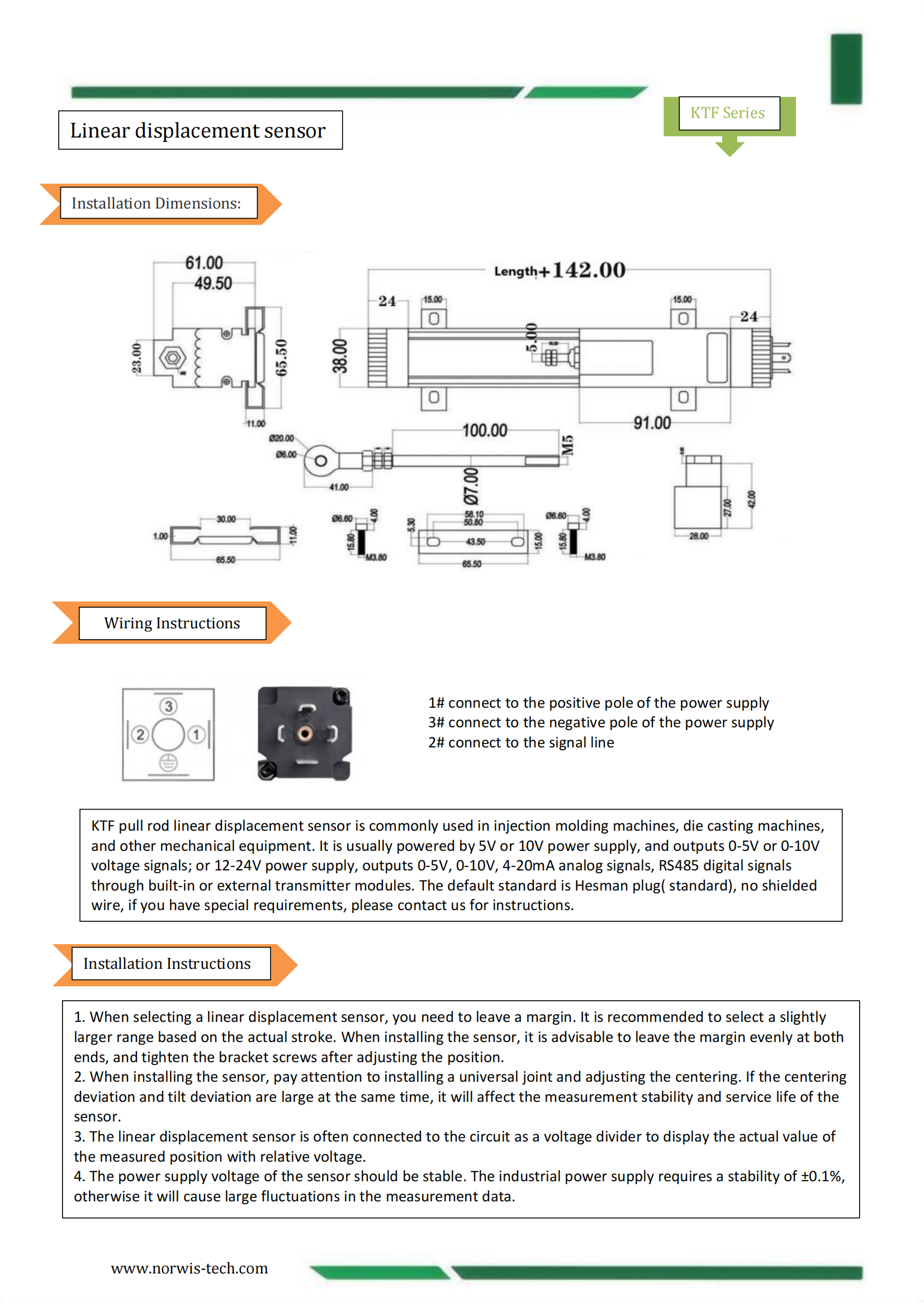

It is suitable for the installation of mechanical equipment with large stroke, reducing the installation size of mechanical length direction, such as: large injection molding machine closing stroke, rubber machine closing stroke, woodworking machinery, hydraulic machinery, etc.
