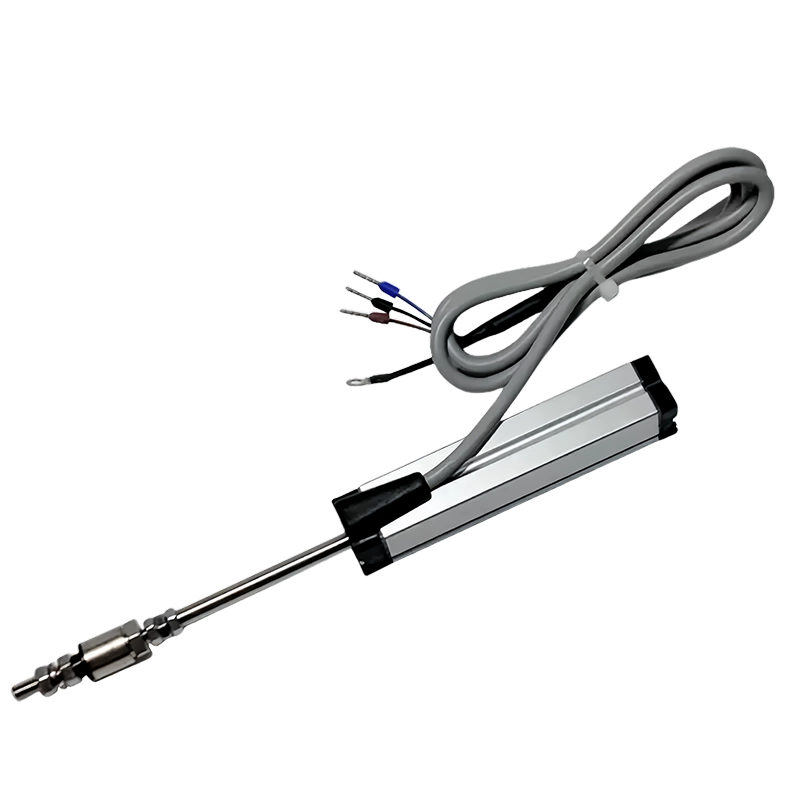

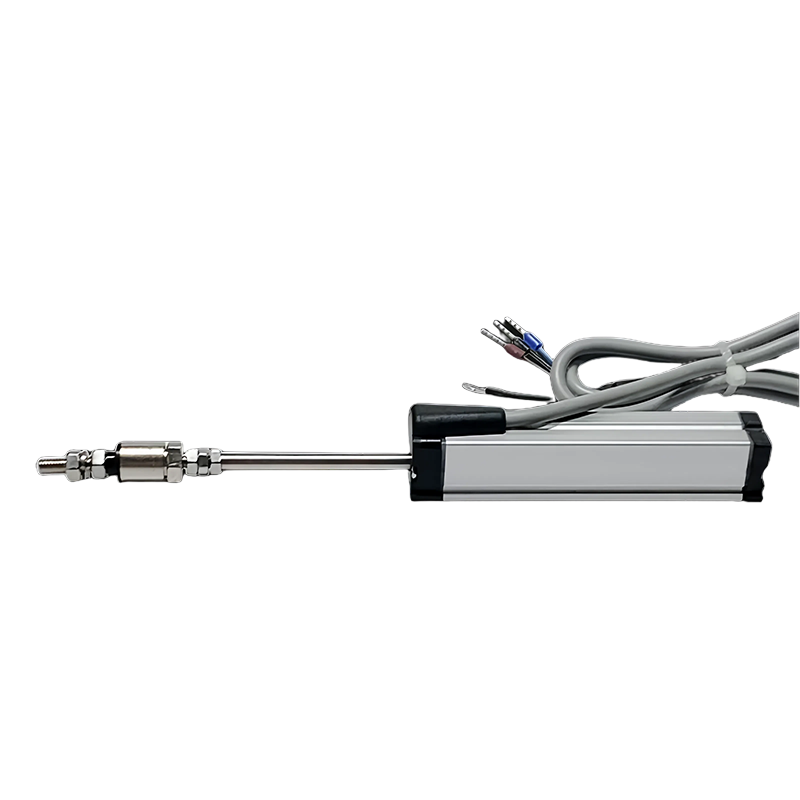

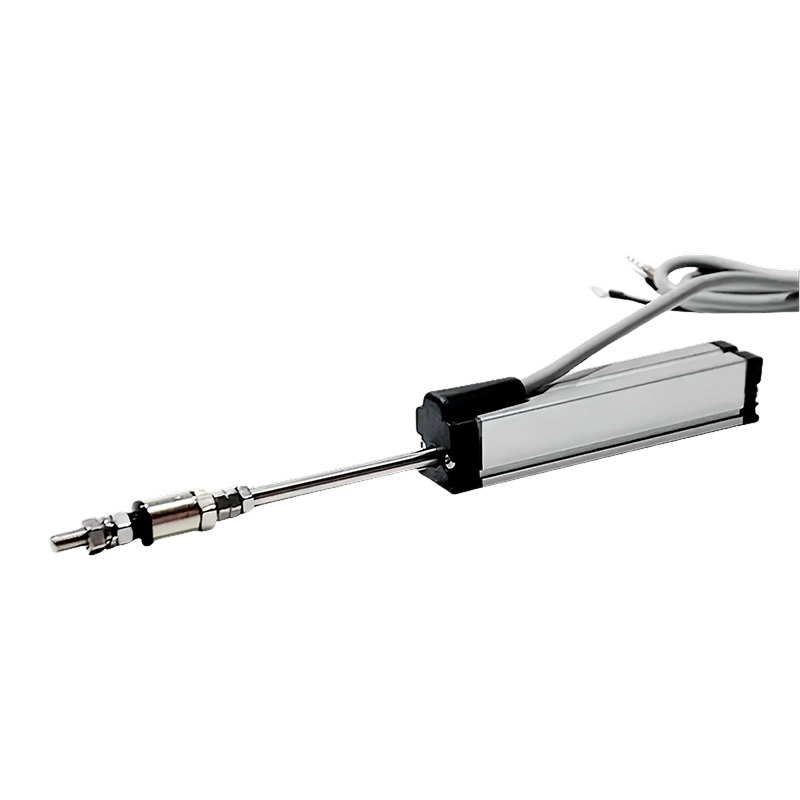

KTM Mini Bar Type Line Sensor
Feature:

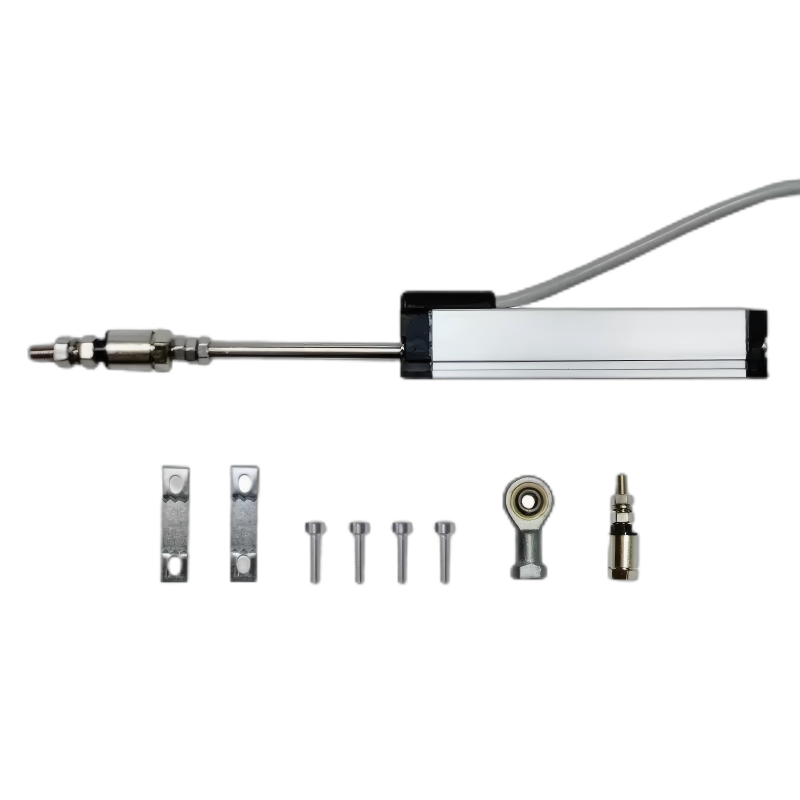

1. Spherical Hinge Could Avoid Lateral Force
2. Usage Life Is Longer, Times Could Reach Thirty Million
3.Suitable For Small Space Applications
4. Resolution Rate Is Higher Than 0.01mm
5. High Speed
6. Din43650 Standard Plug And Socket
7.Protection Grade Is Ip65 (install Down is Ip57)
8.Could Equip With Voltage And Current (2line,3line) Module

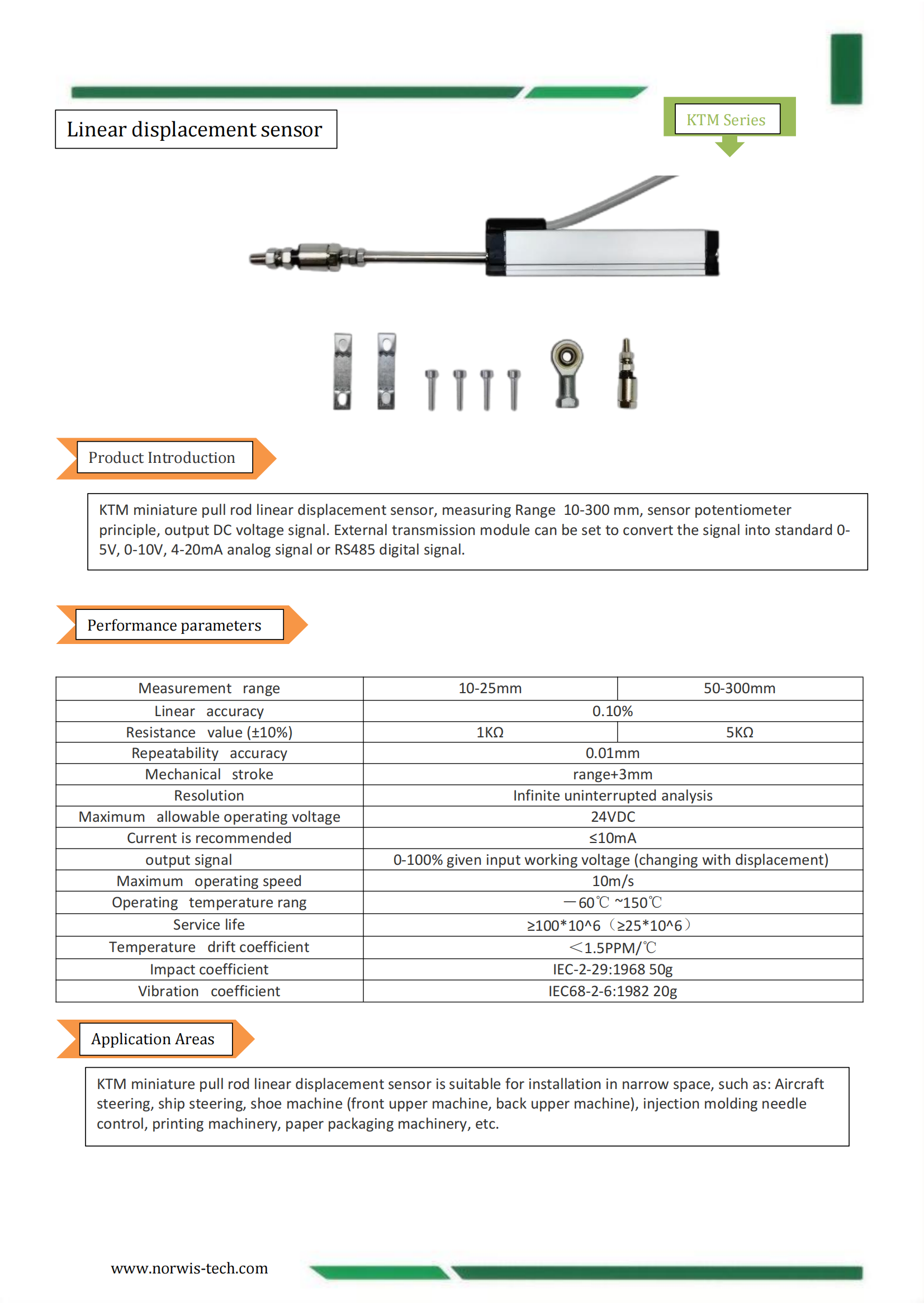

KTM miniature pull rod linear displacement sensor, measuring Range 10-300 mm, sensor potentiometer principle, output DC voltage signal. External transmission module can be set to convert the signal into standard 0-5V, 0-10V, 4-20mA analog signal or RS485 digital signal.
| Range | 10-25mm | 50-300mm |
| Linear accuracy | 0. 10% | |
| Resistance value （ ± 10% ） | 1K Ω | 5K Ω |
| Repeatability accuracy | 0. 01mm | |
| Mechanical stroke | Range + 3mm | |
| resolution | Infinite uninterrupted analysis | |
| Maximum allowable working voltage | 24V DC | |
| Current is recommended | ≤10 mA | |
| output signal | 0-100% given input operating voltage (varies with displacement) | |
| Maximum working speed | 10m/s | |
| Operating temperature Range | -60 ℃ ~ 150 ℃ | |
| service life | More than 100 * 106 times (or more than 25 * 106m) | |
| Temperature drift coefficient | <1. 5PPM/ ℃ | |
| Impact coefficient | IEC68-2-29 ： 1968 50g | |
| Vibration coefficient | IEC68-2-6 ： 1982 20g | |

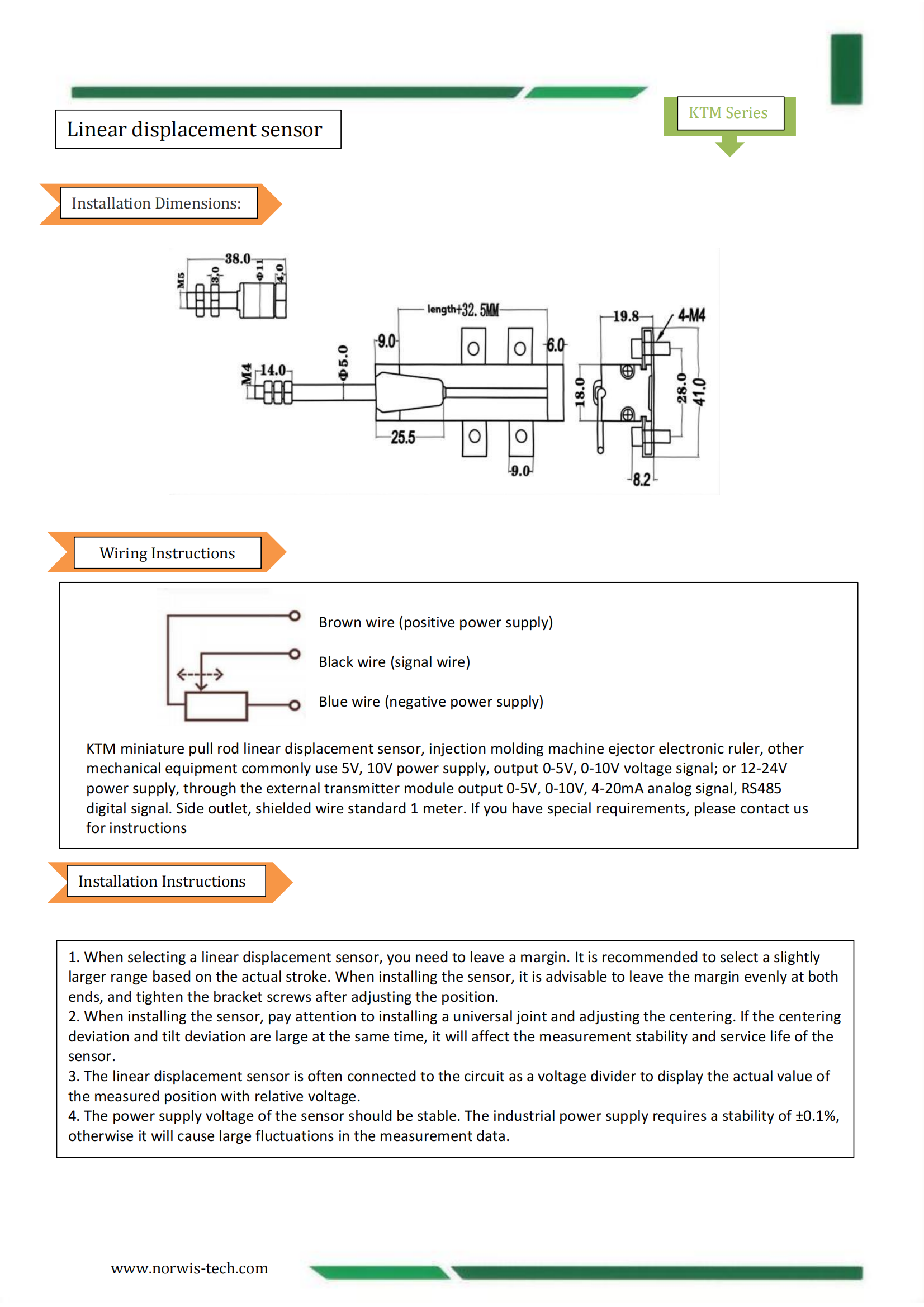

Dimension:
KTM miniature pull rod linear displacement sensor is suitable for installation in narrow space, such as: Aircraft steering, ship steering, shoe machine (front upper machine, back upper machine), injection molding needle control, printing machinery, paper packaging machinery, etc.
