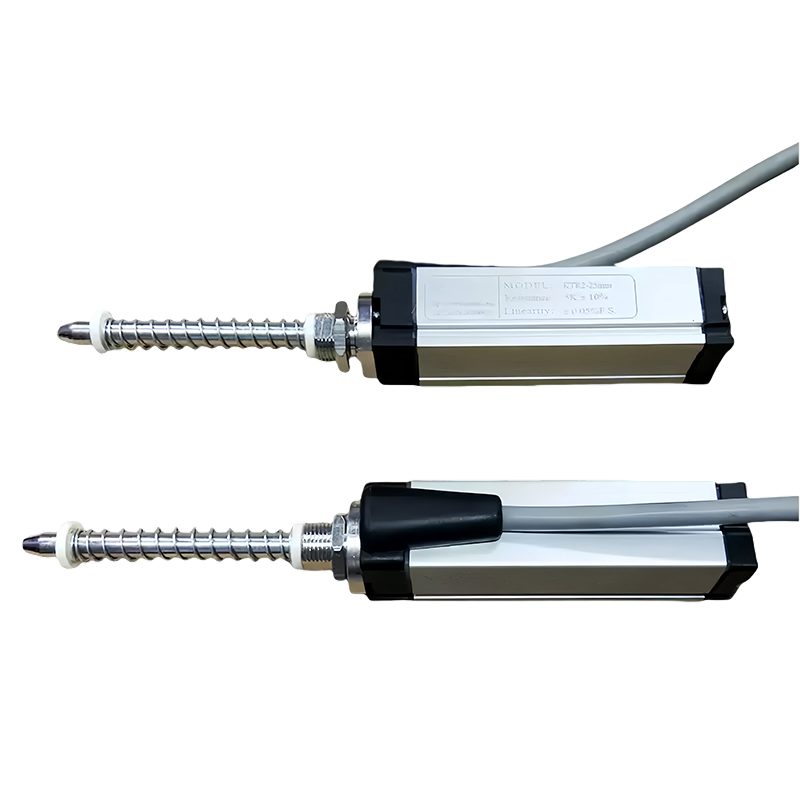

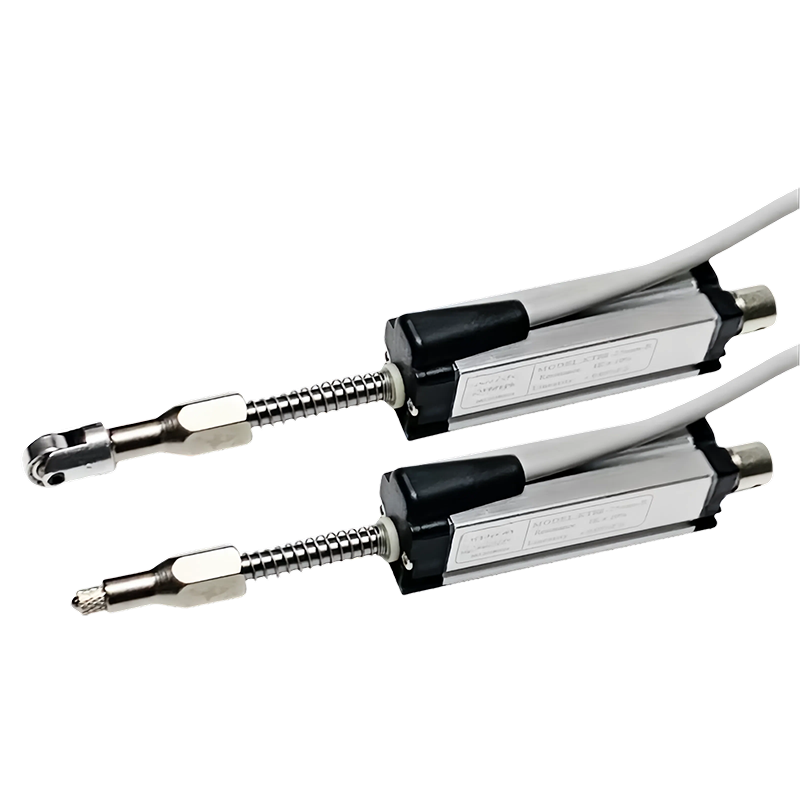

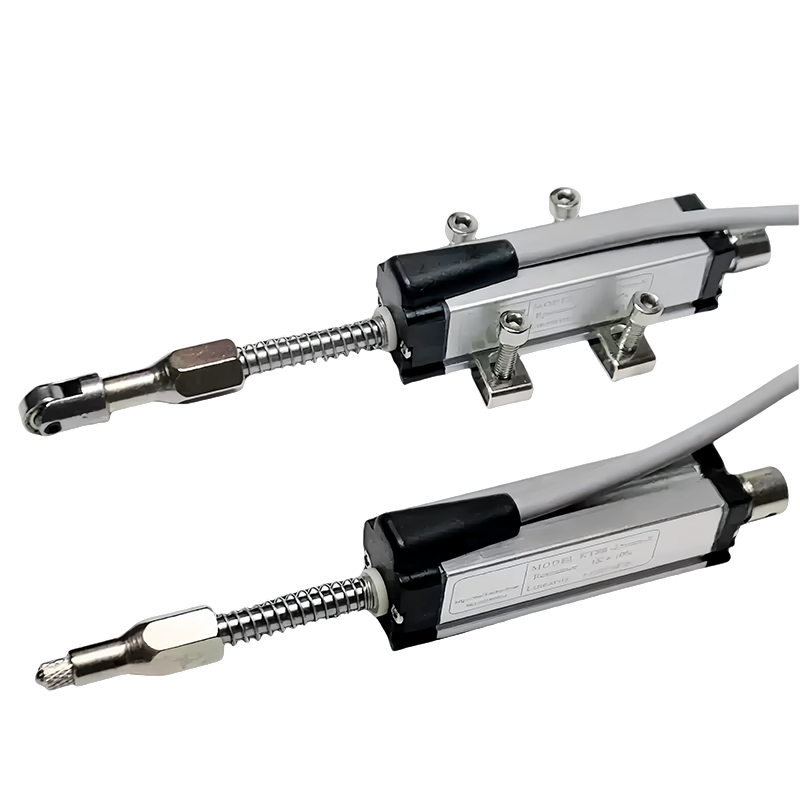

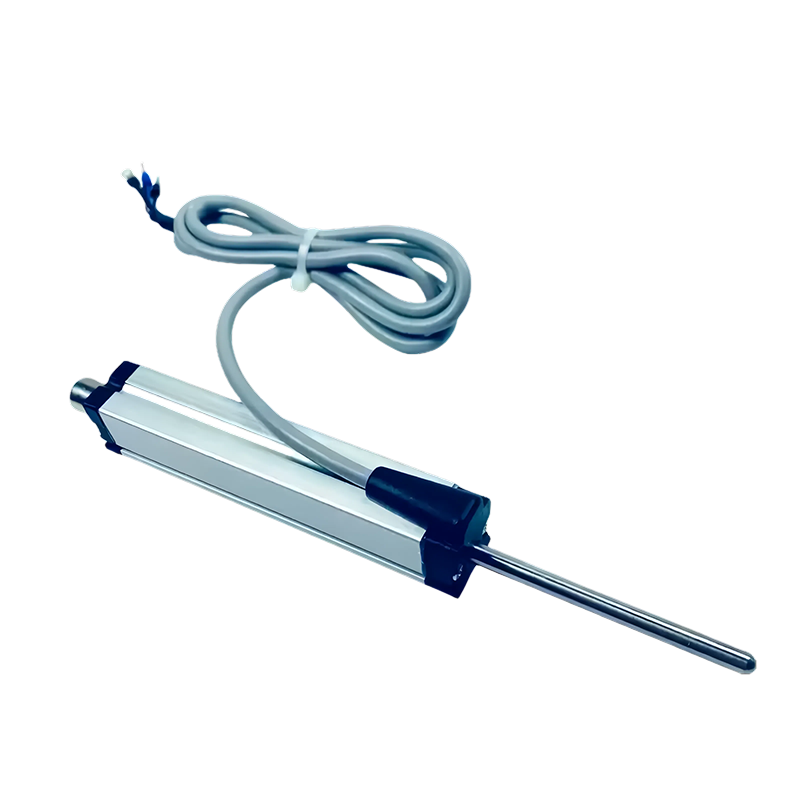

KTR Mini Return Type Liner Sensor
Feature:
1.Volume Smaller
2.Usage Life Is Longer, Times Could Reach Thirty Million
3.Sensor With Back Spring
4.lt is suitable for the equipment without installation and alignment of the push Rod
5. Protection Grade Is Ip65
6. Din Standard Contact Point
7. Double Bearing Typebar
8. Don't Affect With An External Impact And Vibration
9. Cable Type Connection
10. Could Equip With Voltage And Current (2line,3line) Module

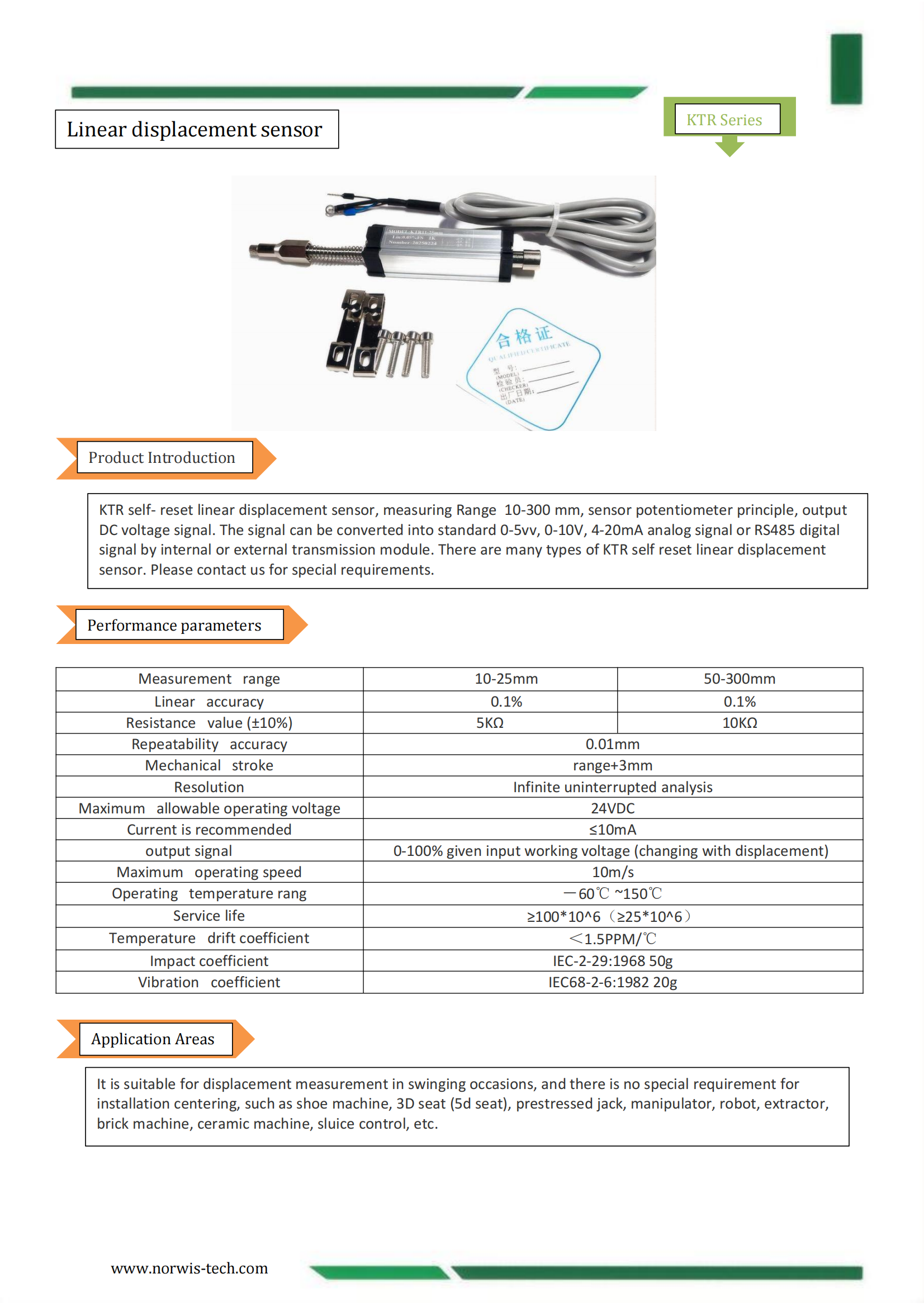

KTR self reset linear displacement sensor, measuring Range 10-300 mm, sensor potentiometer principle, output DC voltage signal. The signal can be converted into standard 0-5vv, 0-10V, 4-20mA analog signal or RS485 digital signal by internal or external transmission module. There are many types of KTR self reset linear displacement sensor. Please contact us for special requirements.
| Range | 10-25mm | 50-300 mm |
| Linear accuracy | 0. 10% | |
| Resistance value （ ± 10% ） | 1K Ω | 5K Ω |
| Repeatability accuracy | 0. 01mm | |
| Mechanical stroke | Range + 3min | |
| resolution | Infinite uninterrupted analysis | |
| Maximum allowable working voltage | 24V DC | |
| Construction current | ≤10 mA | |
| output signal | 0-100% given input operating voltage (varies with displacement) | |
| Maximum working speed | 10m/s | |
| Operating temperature Range | -60 ℃～ 150 ℃ | |
| service life | More than 100 * 106 times (or more than 25 * 106m) | |
| Temperature drift coefficient | <1. 5PPM/ ℃ | |
| Impact coefficient | IEC68-2-29 ： 1968 50g | |
| Vibration coefficient | IEC68-2-6 ： 1982 20g | |
