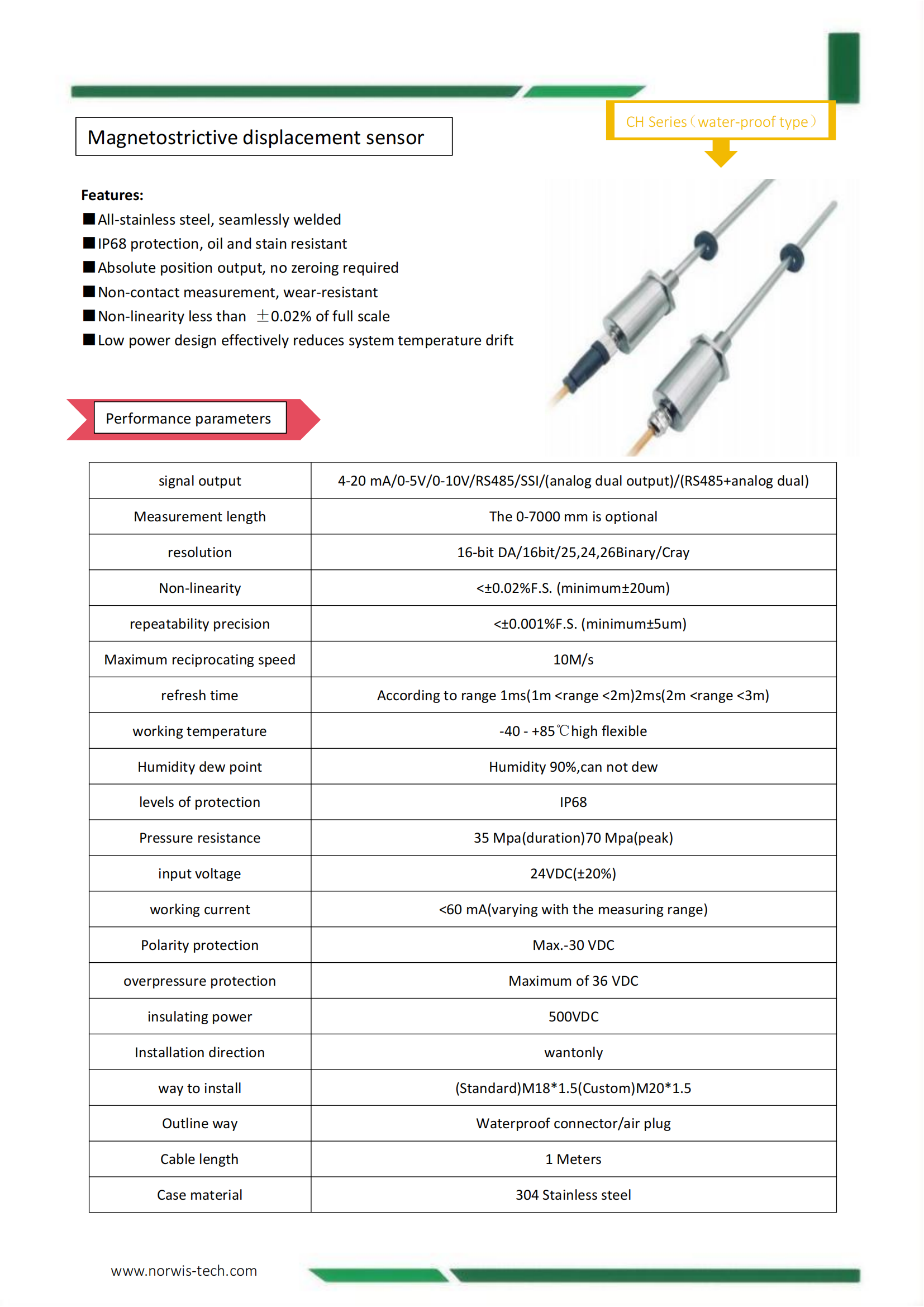

Fertures:
■ All-round stainless steel seamless welding
■ Protection grade IP68, oil resistance and pollution resistance
■ Absolute position output, no zero
■ Non-contact measurement, never wear
■ Nonlinearity, less than ± 0.02%
■ Low power consumption design, effectively reduce the system temperature drift
Technical parameters:
| signal output | 4-20 mA / 0-5V / 0-10V / RS485 / SSI / (analog dual output) / (RS485 + analog dual output) |
| Measurement length | 0-7000mm is optional |
| resolution | 16-bit DA / 16bit / 25,24,26Binary / Cray |
| Non-linearity | <±0.02%F.S.(min±20um) |
| repeatability precision | <±0.001%F.S.(min±5um) |
| Maximum reciprocating speed | 10M/s |
| refresh time | According to range 1ms (1m <range <2m) 2ms (2m <range <3m) |
| working temperature | -40~+85℃ high flexible |
| Humidity dew point | Humidity 90%，can not dew |
| levels of protection | IP68 |
| Pressure resistance | 35Mpa（duration）70Mpa（peak） |
| input voltage | 24VDC（±20%） |
| working current | ＜60mA（varying with the range） |
| Polarity protection | Max -30VDC |
| overpressure protection | Max 36VDC |
| insulating power | 500VDC |
| Installation direction | wantonly |
| way to install | (Standard)M18*1.5 （Customized）M20*1.5 |
| Outline way | Waterproof connector / air plug |
| Cable length | 1m |
| Case material | 304 Stainless steel |
