Characteristics:

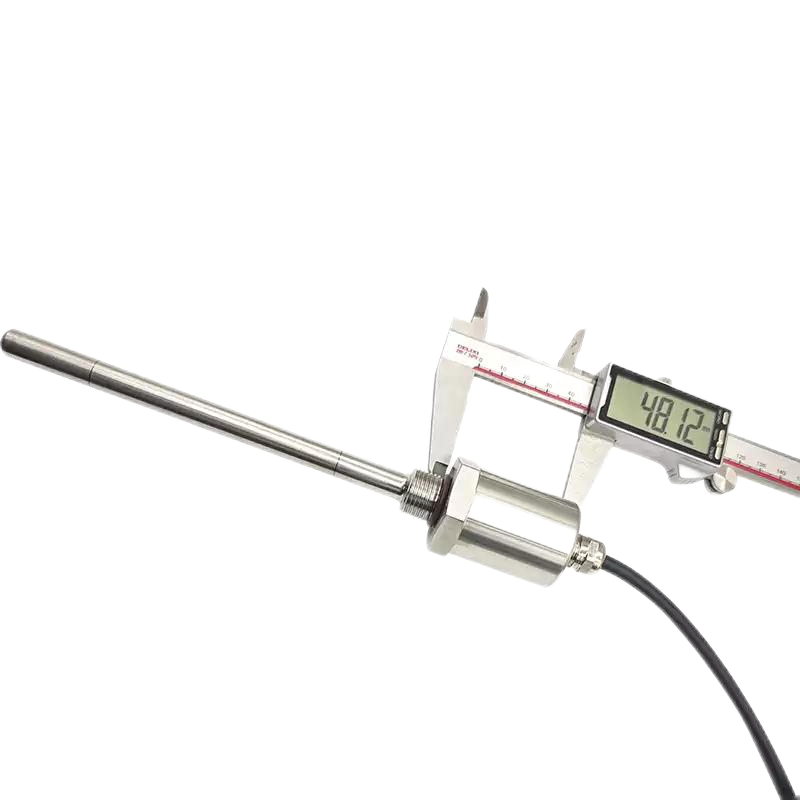

■ Ultra-small volume is suitable for limited installation space
■ Protection grade IP68, waterproof and oil-proof
■ All-round stainless steel is sealed, strong and durable
■ Seismic voltage withstand design
■ Absolute position output, no zero
■ Non-contact measurement, never wear away
■ Nonlinearity, less than ± 0.02%

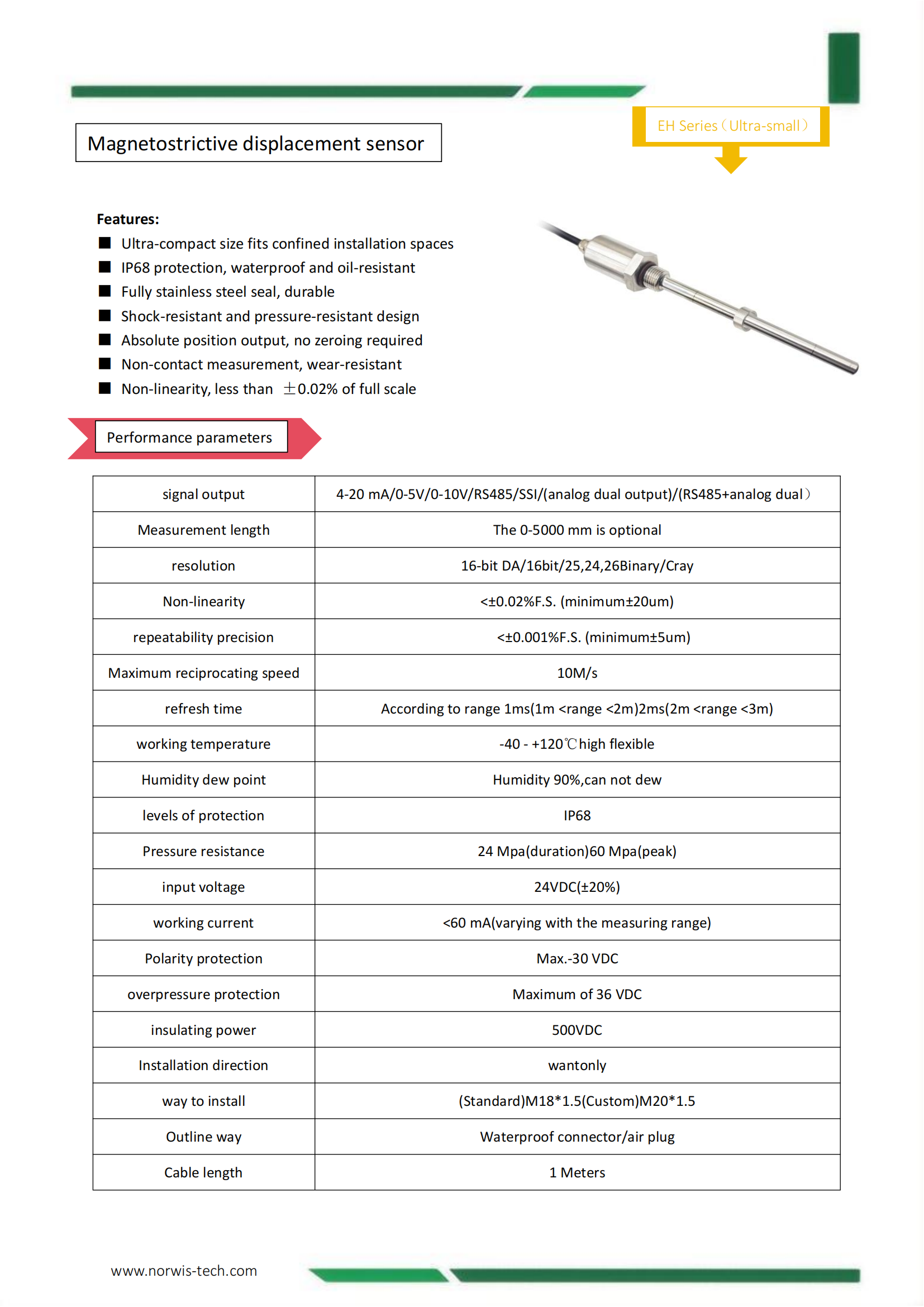

Technical Parameters:
| signal output | 4-20mA /20-4mA/ 0-5V/5-0V/ 0-10V/10-0V/RS485 |
| Measurement length | 0-5000mm is optional |
| resolution | 16位DA / 16bit |
| Non-linearity | <±0.02%F.S.(min ±20um) |
| repeatability precision | <±0.001%F.S.(min ±5um) |
| Maximum reciprocating speed | 10M/s |
| refresh time | Range 1ms（1m＜range＜2m） 2ms（2m＜range＜3m） |
| working temperature | -45~+120℃ |
| Humidity dew point | Humidity 90%，can not dew |
| levels of protection | IP68 |
| Pressure resistance | 24Mpa（duration）60Mpa（peak） |
| input voltage | 24VDC（±20%） |
| working current | ＜60mA（varying with the range） |
| Polarity protection | Max-30VDC |
| overpressure protection | Max 36VDC |
| insulating power | 500VDC |
| Installation direction | wantonly |
| way to install | (Standard)M18*1.5 （Custom）M20*1.5 |
| Outline way | Waterproof connector(IP68)/aviation plug（IP67） |
| Cable length | 1m |
