Characteristics:
■ Linear measurement, absolute value output
■ Non-contact measurement, with high reliability
■ Robable industrial displacement sensor
■ The linear accuracy is <±0.05%F.S
■ Repeat accuracy <0.01% F.S
■ Direct position signal output: analog (V / mA)
■ Measure the stroke of 0-3500mm

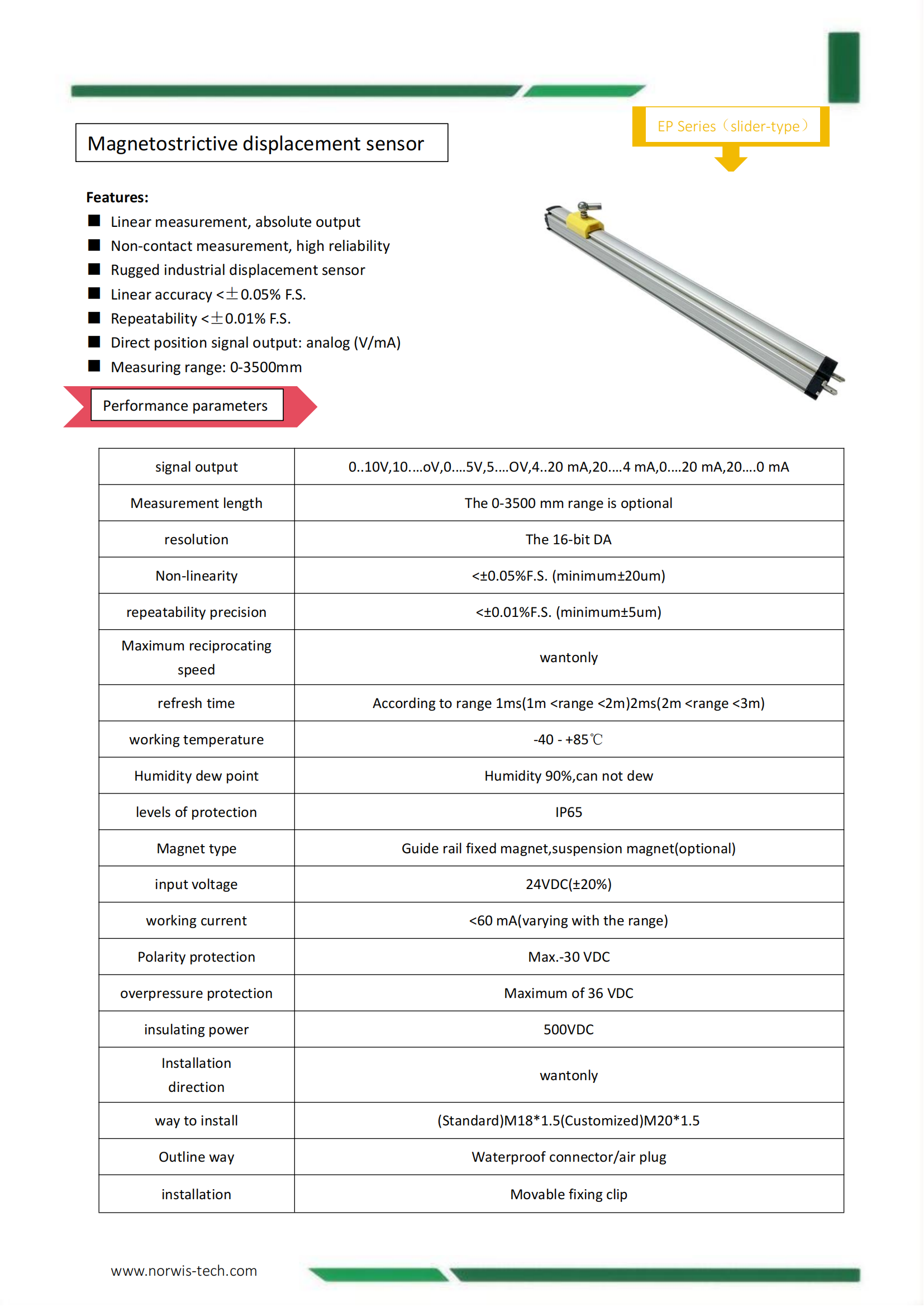

Technical Parameters:
| signal output | 0..10V, 10...0V, 0...5V,5...0V,4...20mA，20...4mA,0...20mA, 20...0mA |
| Measurement length | 0-3500mm range is optional |
| resolution | 16位DA |
| Non-linearity | <±0.05%F.S.(min±20um) |
| repeatability precision | <±0.01%F.S.(min±5um) |
| Maximum reciprocating speed | Speed wantonly |
| refresh time | According to range1ms（1m＜range＜2m） 2ms（2m＜range＜3m） |
| working temperature | -40~+85℃ |
| Humidity dew point | Humidity 90%，can not dew |
| levels of protection | IP65 |

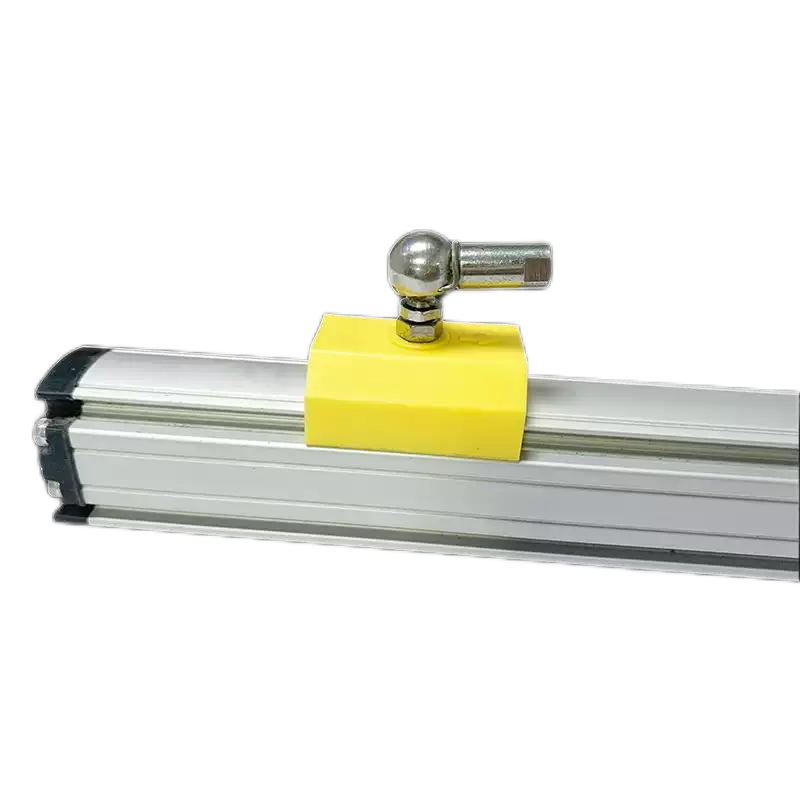

| Magnet type | Guide rail fixed magnet, suspension magnet (optional) |
| input voltage | 24VDC（±20%） |
| working current | ＜60mA（varying with the range） |
| Polarity protection | Max-30VDC |
| overpressure protection | Max36VDC |
| insulating power | 500VDC |
| Installation direction | wantonly |
| way to install | (Standard)M18*1.5 （Customized）M20*1.5 |
| Outline way | Waterproof connector / air plug |
| installation | Movable fixing clip |
