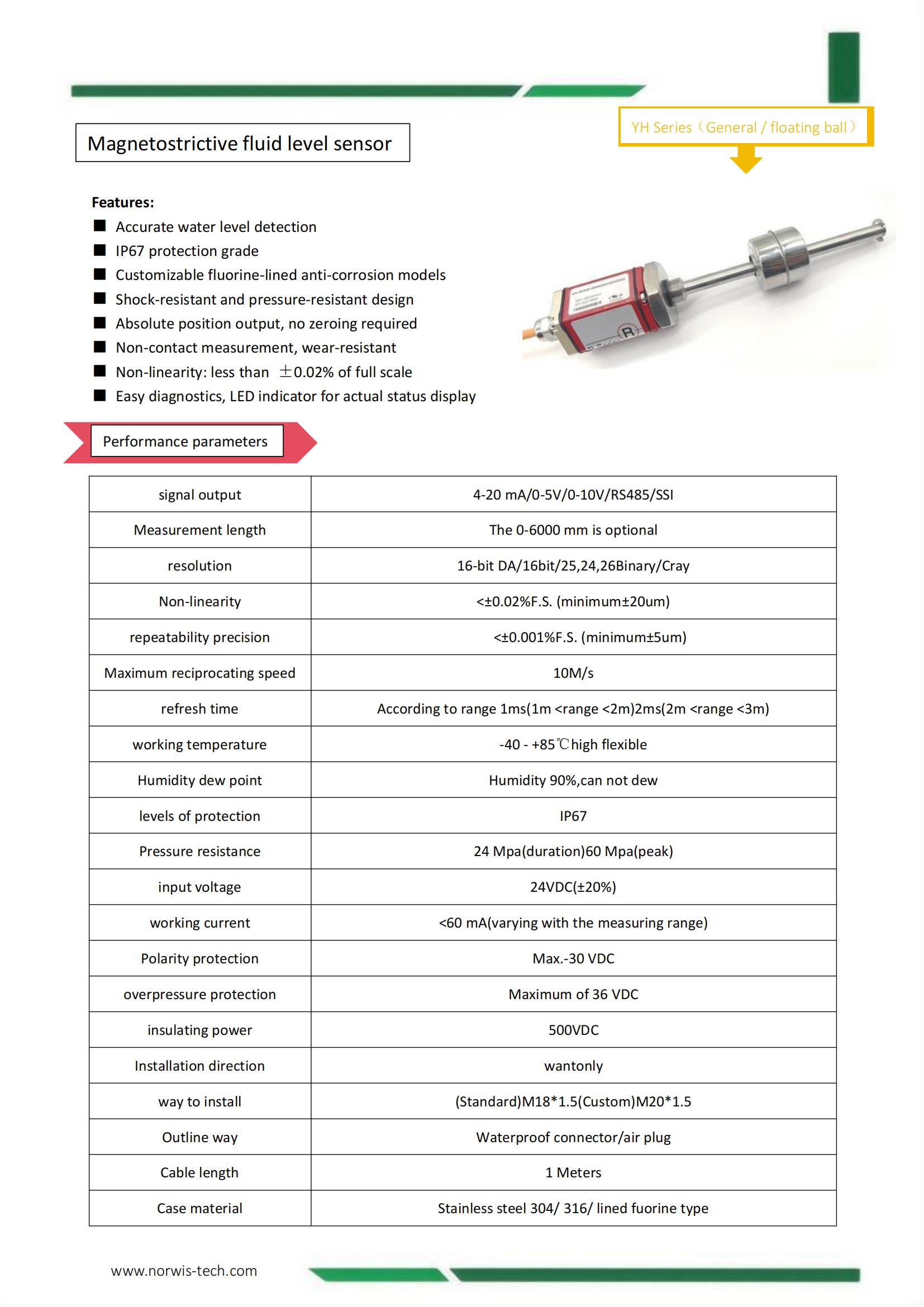

Characteristics:
■ Accurate detection of water level level
■ Protection level IP67
■ Customized fluorine corrosion lining
■ Seismic voltage withstand design
■ Absolute position output, no zero
■ Non-contact measurement, never wear
■ Nonlinearity, less than ± 0.02%
■ Easy to diagnose, LED lamp actual status display
Technical Parameter:
| signal output | 4-20mA / 0-5V / 0-10V / RS485 / SSI |
| Measurement length | 0-7000mm is optional |
| resolution | 16位DA / 16bit / 25，24,26Binary/Cray |
| Non-linearity | <±0.02%F.S.(min±20um) |
| repeatability precision | <±0.001%F.S.(min±5um) |
| Maximum reciprocating speed | Speed 10M/s |
| refresh time | According to range（1m＜range＜2m） 2ms（2m＜range＜3m） |
| working temperature | -40~+85℃ |
| Humidity dew point | Humidity 90%，can not dew |
| levels of protection | IP68 |
| Pressure resistance | 35Mpa（duration）70Mpa（peak） |
| input voltage | 24VDC（±20%） |
| working current | ＜60mA（varying with the measuring range） |
| Polarity protection | Max-30VDC |
| overpressure protection | Max 36VDC |
| insulating power | 500VDC |
| Installation direction | wantonly |

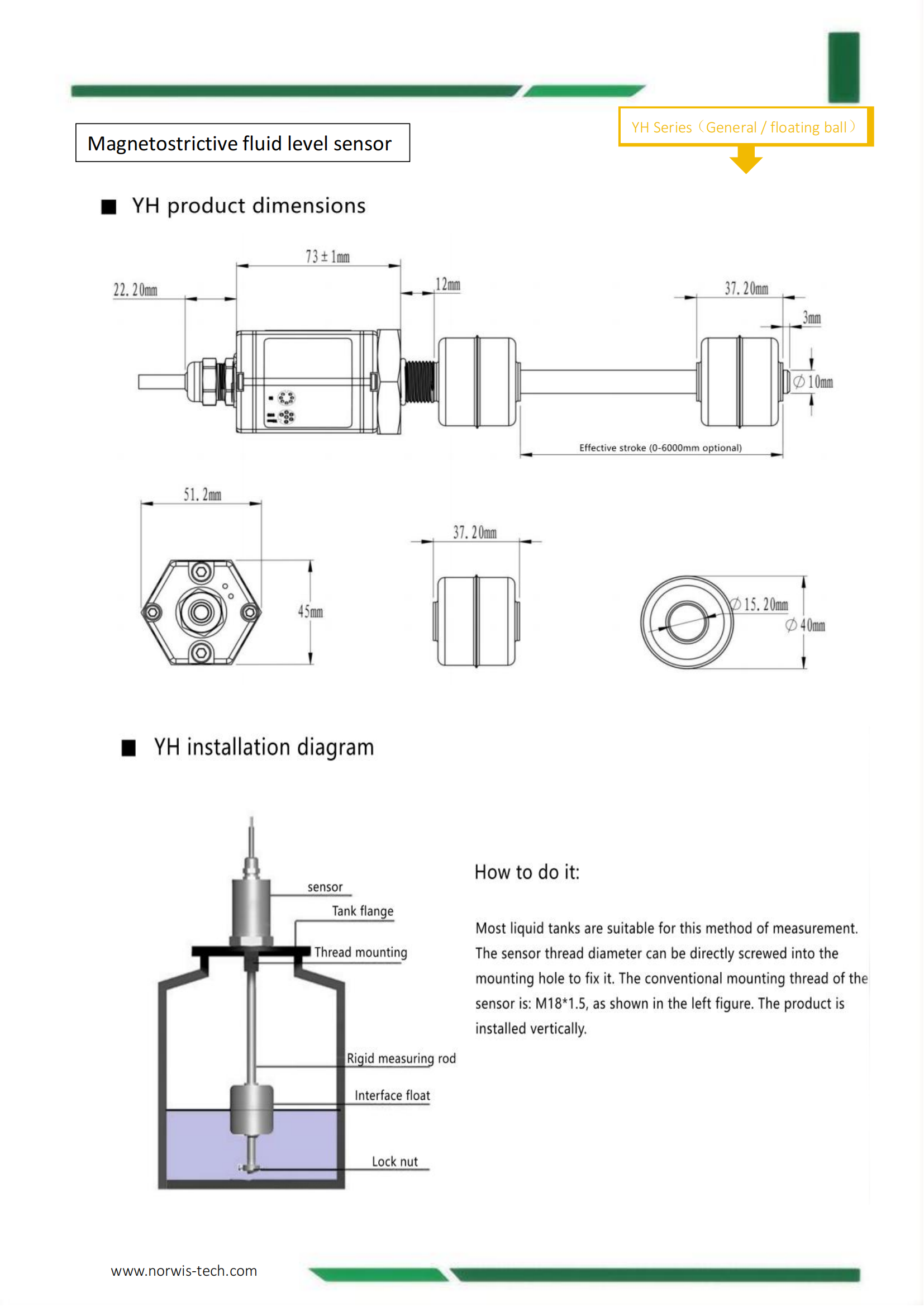

| way to install | (Standard)M18*1.5 （Custom）M20*1.5 |
| Outline way | Waterproof connector / air plug |
| Cable length | 1m |
| Measuring rod material | Stainless steel 304 / 316 lined fluorine type |
