Features:
■ Protection grade IP67, oil resistance and pollution resistance
■ Absolute position output, no zero
■ Non-contact measurement, never wear away
■ Nonlinearity, less than ± 0.02%
■ Low power consumption design, effectively reduce the system temperature drift
■ Easy to diagnose, LED light actual status display

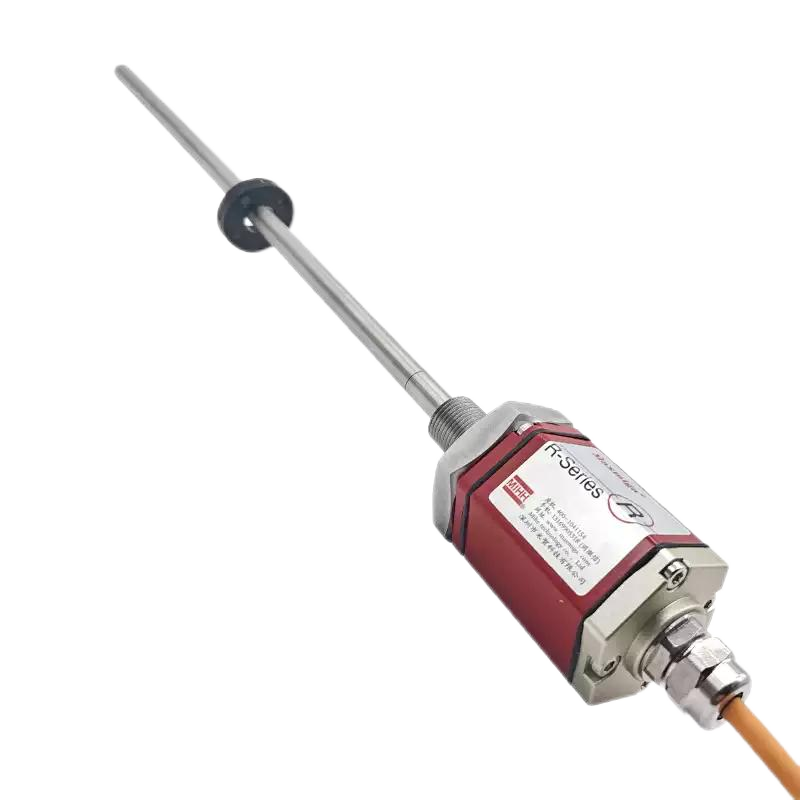

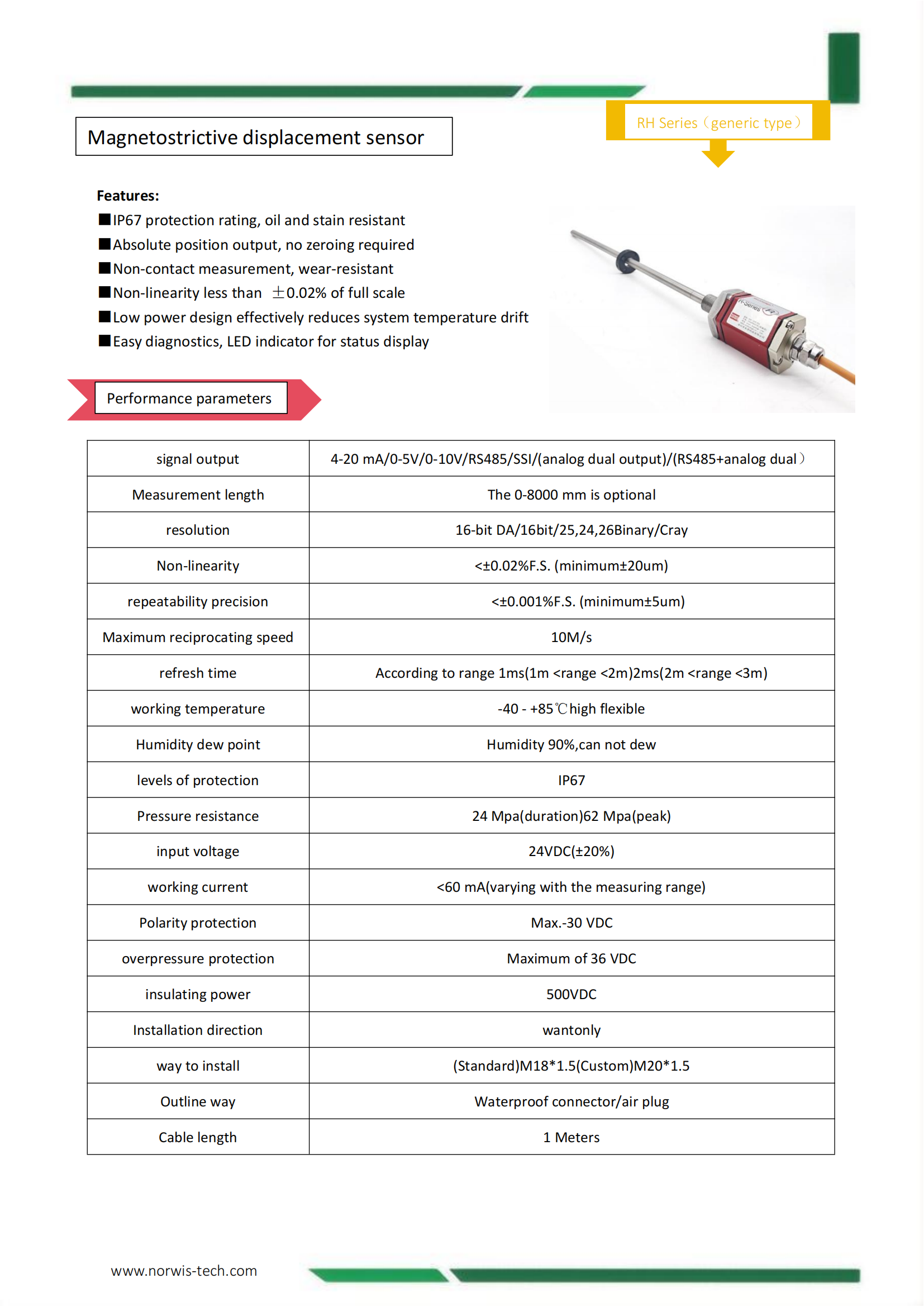

Technical parameters
| signal output | 4-20 mA / 0-5V / 0-10V / RS485 / SSI / (analog dual output) / (RS485 + dual analog |
| Measurement length | The 0-8000 mm is optional |
| resolution | 16-bit DA / 16bit / 25,24,26Binary / Cray |
| Non-linearity | <±0.02%F.S. (minimum ± 20um) |
| repeatability precision | <±0.001%F.S. (max ± 5um) |
| Maximum reciprocating speed | 10M/s |
| refresh time | According to range 1ms (1m <range <2m) 2ms (2m <range <3m) |
| working temperature | -40~ + 85℃ high flexible |
| Humidity dew point | Humidity 90%, can not dew |
| levels of protection | IP67 |
| Pressure resistance | 24 Mpa (duration) 62 Mpa (peak) |
| input voltage | 24VDC (±20%） |
| working current | <60 mA (varying with the measuring range) |
| Polarity protection | Max. -30 VDC |
| overpressure protection | Maximum of 36 VDC |
| insulating power | 500VDC |
| Installation direction | wantonly |
| way to install | (Standard) M18 * 1.5 (Custom) M20 * 1.5 |
| Outline way | Waterproof connector / air plug |
| Cable length | 1 Meters |

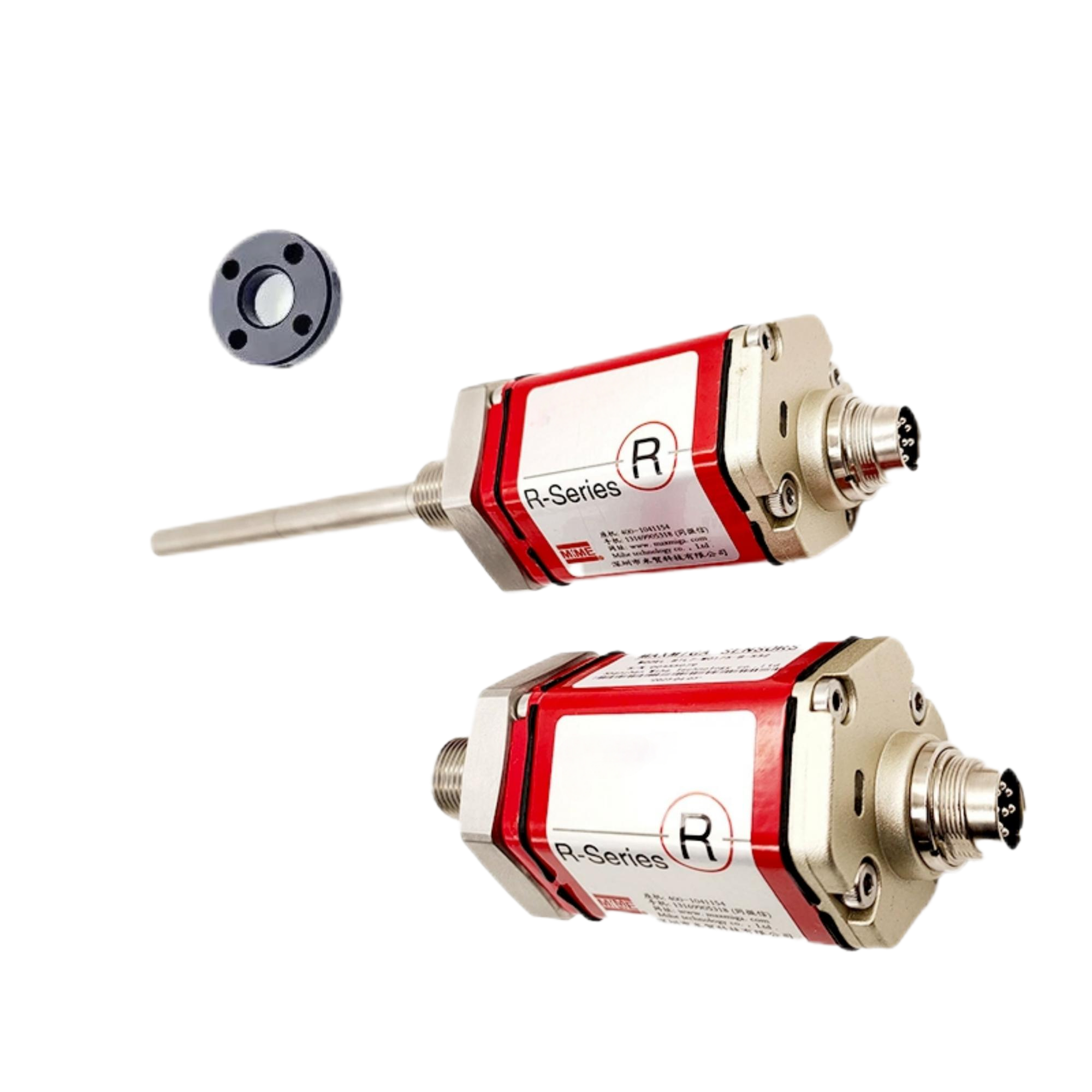

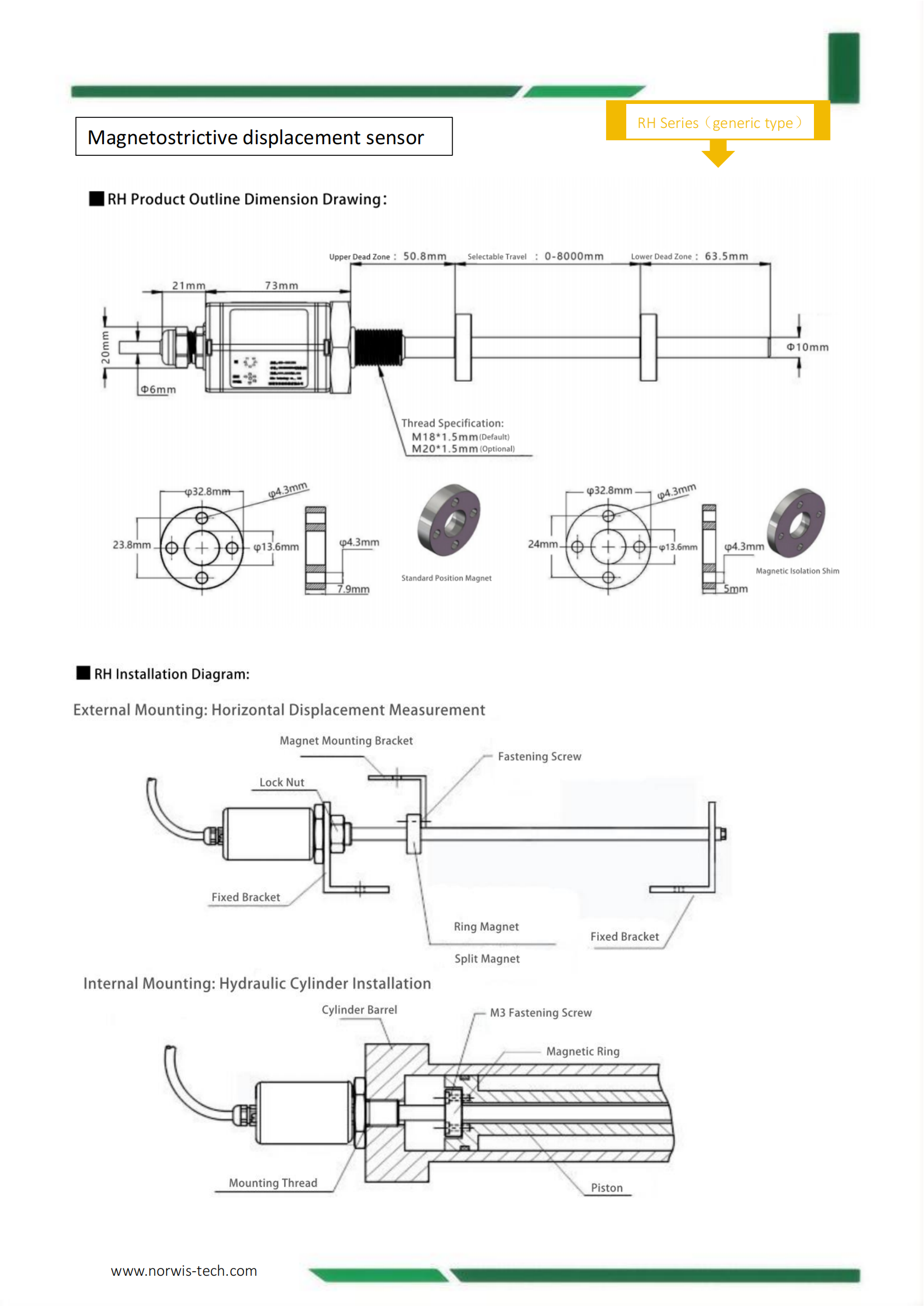

■ RH Dimension Diagram
■ RH installation schematic diagram:

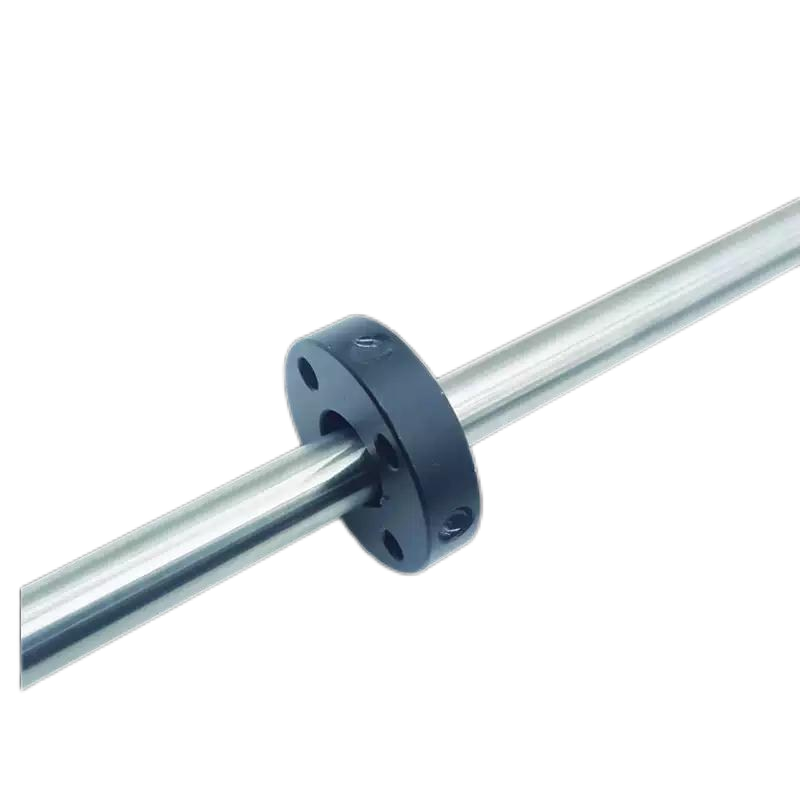

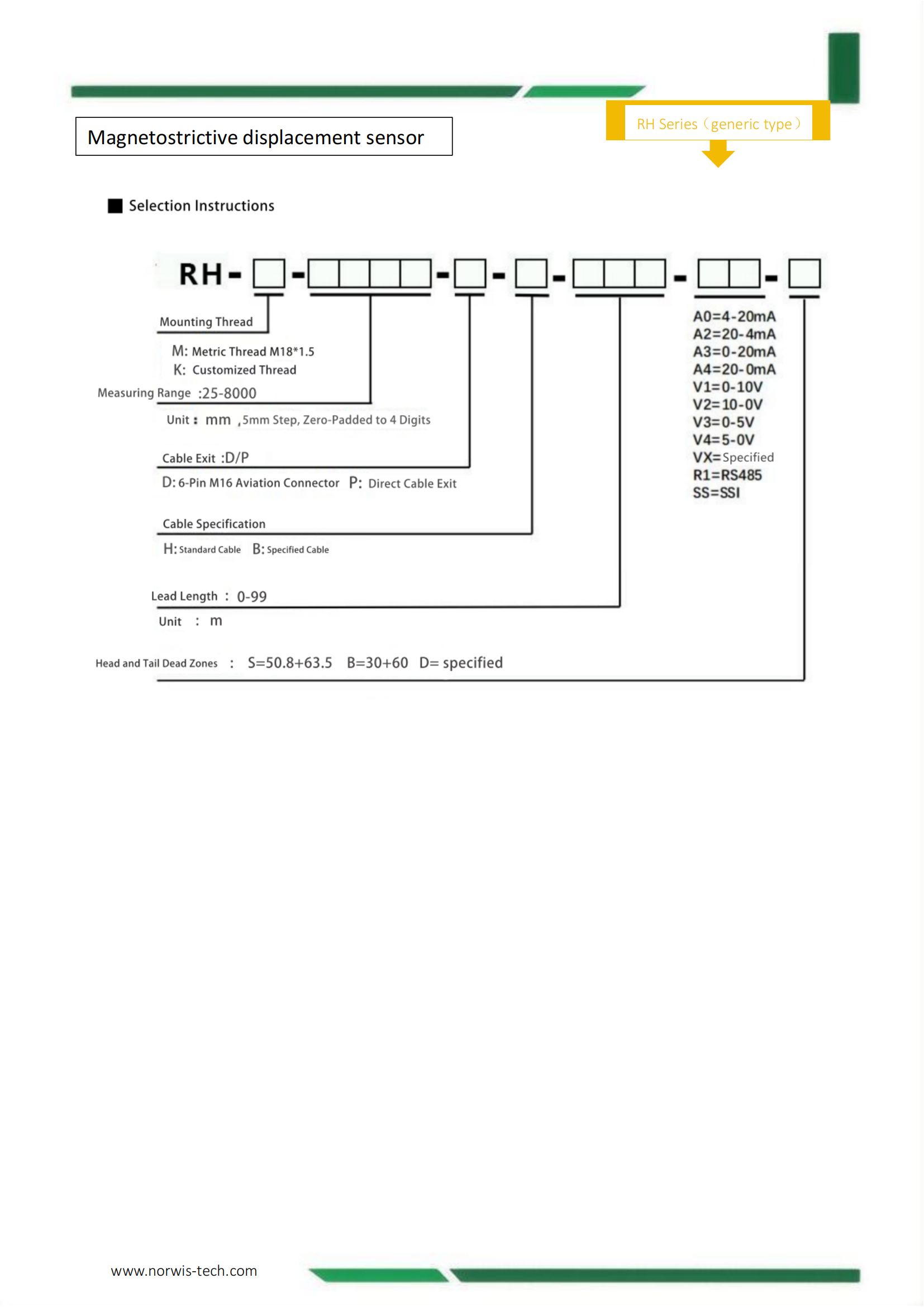

■ Selection Instructions:
